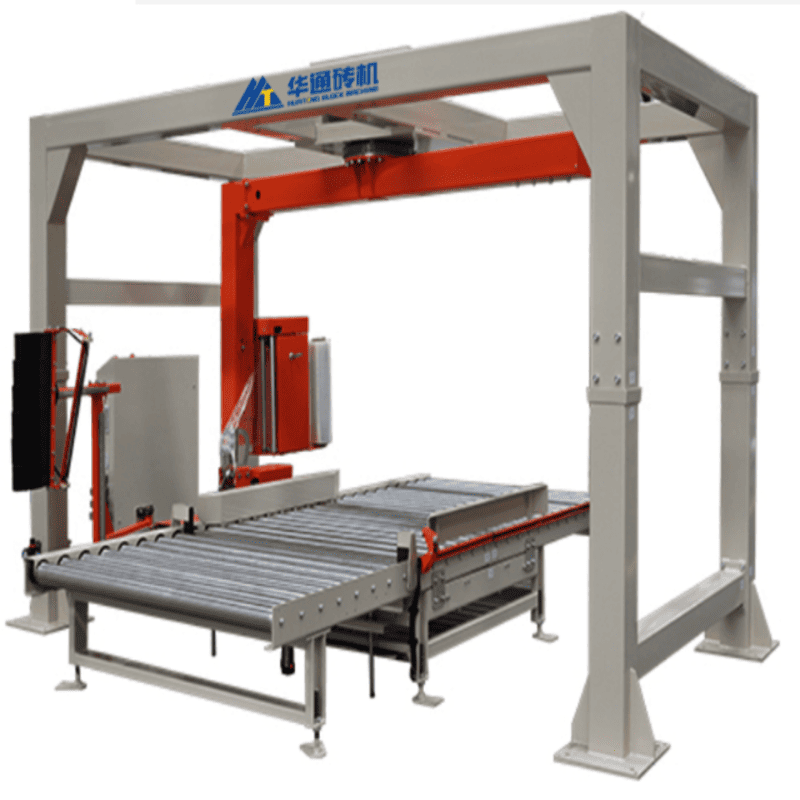

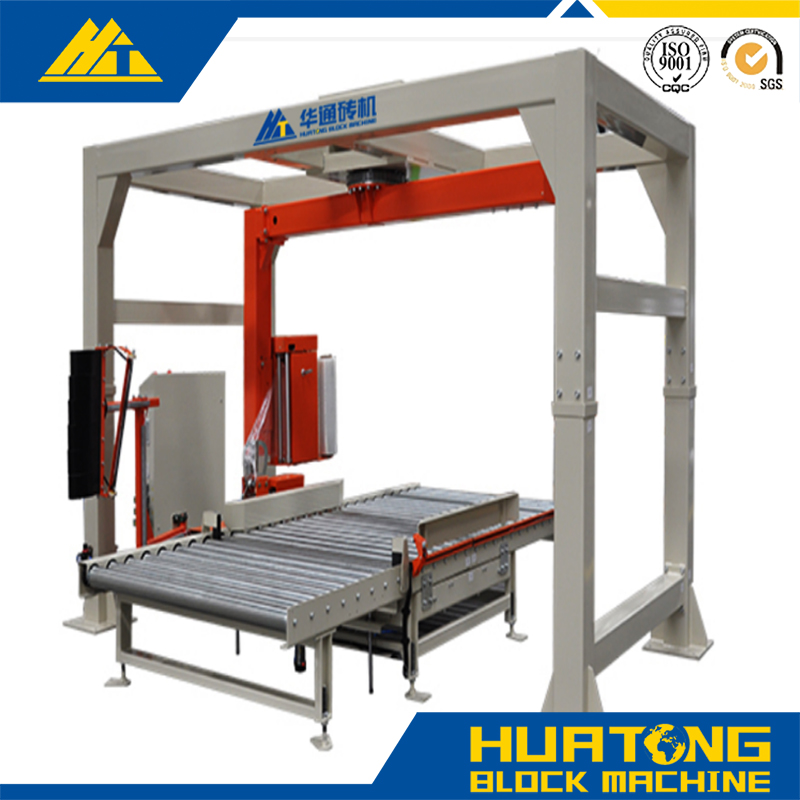

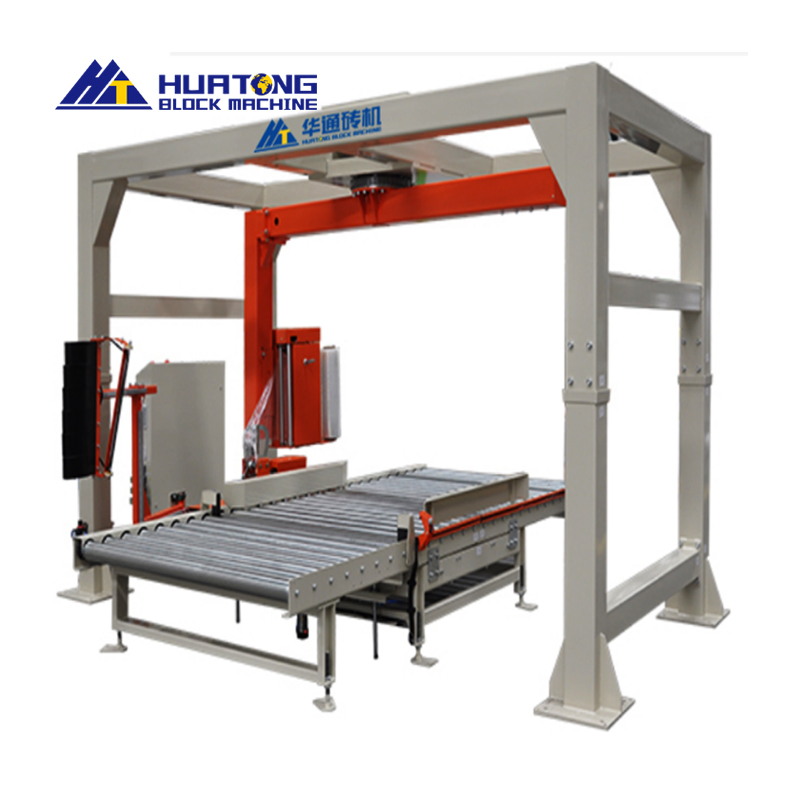

Fully Automatic Packing Machine
The fully automatic packing and laminating machine is an integrated packaging device that combines a cantilever wrapping machine with a laminating function. It performs both wrapping and film covering, creating a five-sided, moisture-proof, rainproof, and dustproof package. It operates unmanned and automatically, offering high efficiency and low packaging costs, making it an ideal device for increasing automation.
Equipment Introduction
The fully automatic cantilever wrapping baler operates in a "film-around-cargo" fashion. The operator places a fully loaded pallet of cargo in the center of the turntable, sets the packaging parameters (such as the number of wrapping layers and the number of top and bottom wraps), and starts the machine. The machine then operates according to the following process:
Turntable Rotation: The turntable carrying the cargo begins to slowly rotate.
Arm Lifting: Simultaneously, an arm equipped with a pre-stretched film holder rises and lowers at a constant speed within the cargo height range according to a pre-set program.
Film Wrapping: During this process, the film is pulled from a roll and passed through a pre-stretching mechanism, where it is stretched and thinned, significantly increasing film utilization. The film is then evenly wrapped around the cargo surface.
The entire process is fully automated, requiring no human intervention, resulting in a stable, neat, and moisture-resistant packaging unit.
Three Core Advantages
Advantage 1: High Efficiency and Energy Saving, Significantly Reducing Packaging Costs
Extremely High Packaging Efficiency: The automated process replaces arduous manual wrapping. Wrapping a standard pallet typically takes only 2-3 minutes, an efficiency improvement of over 400% compared to manual wrapping. It is particularly suitable for assembly line operations and high-volume environments.
ExcelleSavingsnt Film : The machine's "pre-stretching" mechanism is key. It can stretch the film by 200%-300%. This means that one meter of film can wrap two to three meters of goods, significantly increasing film coverage and directly reducing packaging material costs per pallet.
Extremely Low Labor Costs: One person can complete the entire process, freeing workers from repetitive manual labor and allowing them to focus on other processes, effectively optimizing human resources.
Advantage 2: Stable and reliable packaging quality, enhancing cargo safety
Consistent wrapping force: The machine ensures consistent wrapping tension every time, eliminating the problem of manual wrapping that can cause intermittent tightening and loosening due to fatigue.
Excellent Stability: The uniform and tight pressure of the wrapping film firmly binds the goods on the pallet, preventing them from tilting, loosening, or even collapsing due to vibration and bumps during transport, significantly minimizing damage.
Excellent Protection: The resulting packaging layer effectively protects against dust, moisture, and oil, keeping the products clean and meeting the requirements of long-term storage and long-distance transportation.
Advantage 3: Automation and Intelligence, Easy Operation and High Adaptability
Simple Operation, One-Button Start: After simple training, any worker can operate the machine. Simply pressing the start button automatically completes the entire packaging process, reducing operational difficulty and training costs.
Powerful Adjustability: Packaging parameters such as the number of top and bottom reinforcements, number of wrapping layers, and packaging height can be flexibly adjusted to suit the characteristics of the goods (e.g., height, weight, and stability), enabling customized packaging for fragile and tall items.
Good scalability and compatibility: This model can be easily integrated into automated production lines and work with conveyor rollers, top cover devices, spraying systems, etc. to achieve unmanned packaging throughout the entire process from production to delivery.
