Brick Machine

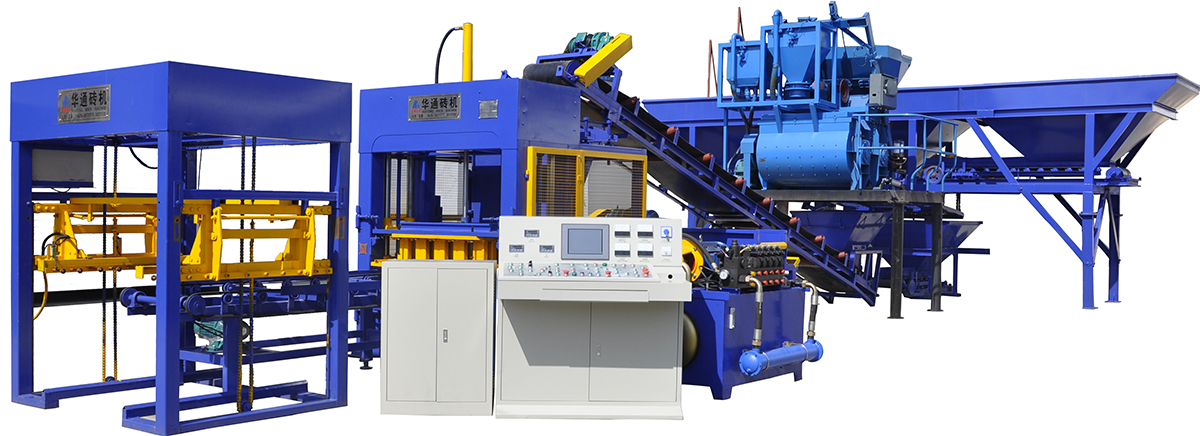

Models：QT7-15Automatic Brick Machine
The QT7-15 automatic no-bake block machine is fully fabricated with national standard steel sections via integrated welding. Critical mold parts are processed with multiple heat treatments. Its coordinated hydraulic and vibration systems guarantee high compactness and strength of finished blocks. With fully automatic cycles, easy operation, moderate production capacity and low initial investment, this model is widely favored by small and medium building materials manufacturers worldwide.
Brick Machine is one excellent euipment used for producing standard brick,paver bricks,hollow brick and curbstone.This model is QT7-15Automatic Brick Machine and its pallet size is 1150x700mm.For 8inches hollow block,brick machine(QT7-15) can produce 7 pieces each mould.For 6 inches hollow brick,the machine produce 8 pieces each mould.Brick Machine(QT7-15) is one good choice for middle scale brick making business
Technical Parameter of QT7-15Automatic Brick Machine
| Dimension | 3250x2000x2930mm | Weight | 12000KGS | |||
| Pallet Size | 1150x750mm | Vibration Force | 85KN | |||
| Mode of Vibration | Table Vibration | Vibration Frequency | 4200r/min | |||
| Cycle Time | 15-25Sec | Total Power | 37.5KW | |||
Production Capacity of QT7-15Automatic Brick Machine
Block Type | Picture | Size（L×W×H) | Pcs./Pallet | Pcs./Hour | Pcs./8Hours |
8 inches Hollow Block | | 400x200x200mm | 7 | 1680 | 13440 |
6 inches Hollow Block | | 400x150x200mm | 8 | 1920 | 15360 |
Bevel Edge Paver | | 200x100x60mm | 30 | 5400 | 43200 |
Zigzag Paver |
| 225x112.5x60mm | 18 | 3000 | 24900 |
| Stock Brick |
| 220x105x70mm | 34 | 5312 | 42500 |
| We produce mould according to size and shape of client’s block. | |||||
QT7-15 Five Core Advantages
 | Equipped with original Siemens PLC intelligent control system, it features a concise and intuitive operation interface. Multiple block-making programs can be preset, and it comes with a built-in fault self-diagnosis function for stable operation logic, greatly reducing manual operation errors. |
| Integrated hydraulic power station equipped with well-known brand hydraulic valves, delivering long-lasting stable pressure and excellent leak-proof sealing performance. Its large-capacity oil tank matched with cooling device maintains constant oil temperature and provides continuous powerful pressure, ensuring uniform compactness of finished blocks. |  |
 | Adopt dual-motor synchronous high-frequency vibration structure with sufficient and evenly distributed exciting force, which can quickly exhaust air inside raw materials. The finished blocks feature flat and dense surfaces, effectively reducing cement consumption and maintaining stable qualified product quality. |
The mechanical gear and rack synchronous structure eliminates height deviation on both sides of the machine to stabilize block molding quality. It enables synchronous lifting with uniform stress, producing finished blocks free of delamination, missing corners and other defects to greatly reduce the reject rate. This structure offsets unilateral eccentric load, slows the wear of guide components and cylinder parts and reduces oil leakage failures. Besides, the frame and crossbeam are free from unilateral torsion, cutting the overall maintenance cost of the whole machine. |  |
 | All molds undergo multiple heat treatment processes including quenching, tempering, carburizing and nitriding, which greatly improves mold wear resistance and extends service life. Custom sizes and block types are available, such as hollow blocks, solid blocks, paving stones, interlocking blocks and curbstones. |
