Brick Making Machine
1.High Efficiency: The machine have high-flow hydraulic pump ensures greater productivity.
2.Easy Operation: Simple control by one operator with low failure and maintenance rates.
3.Multi-Function: Quick mold changes allow production of various block types.
4.Durable Molds: Advanced heat treatment ensures long service life and high wear resistance.

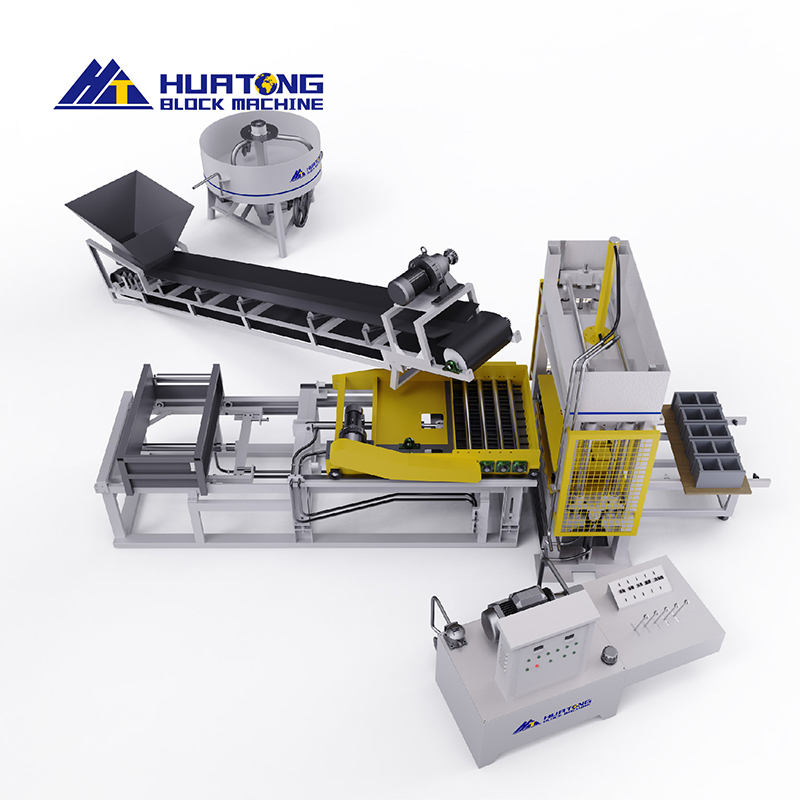

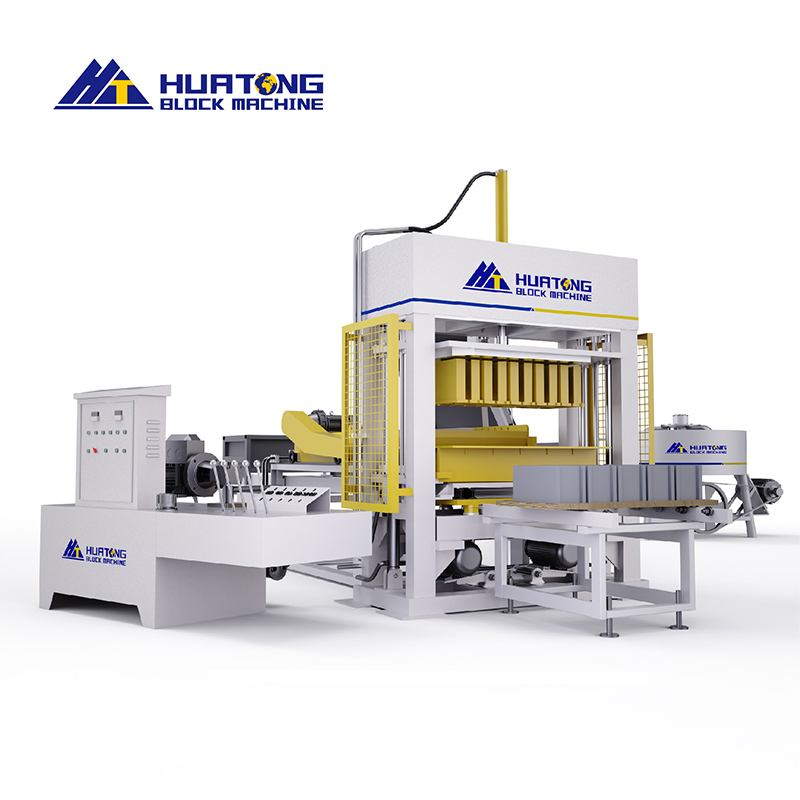

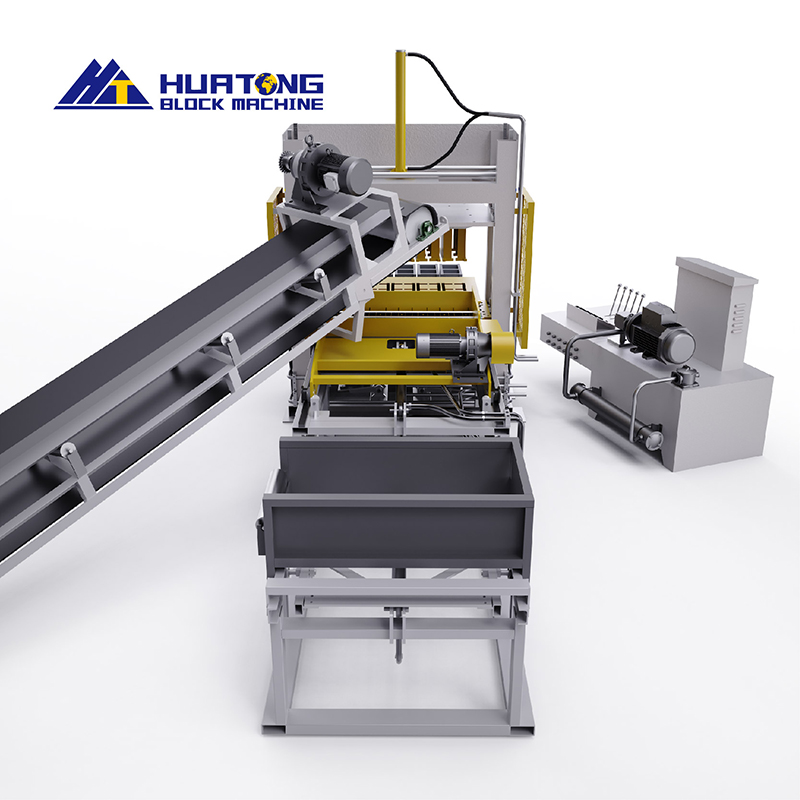

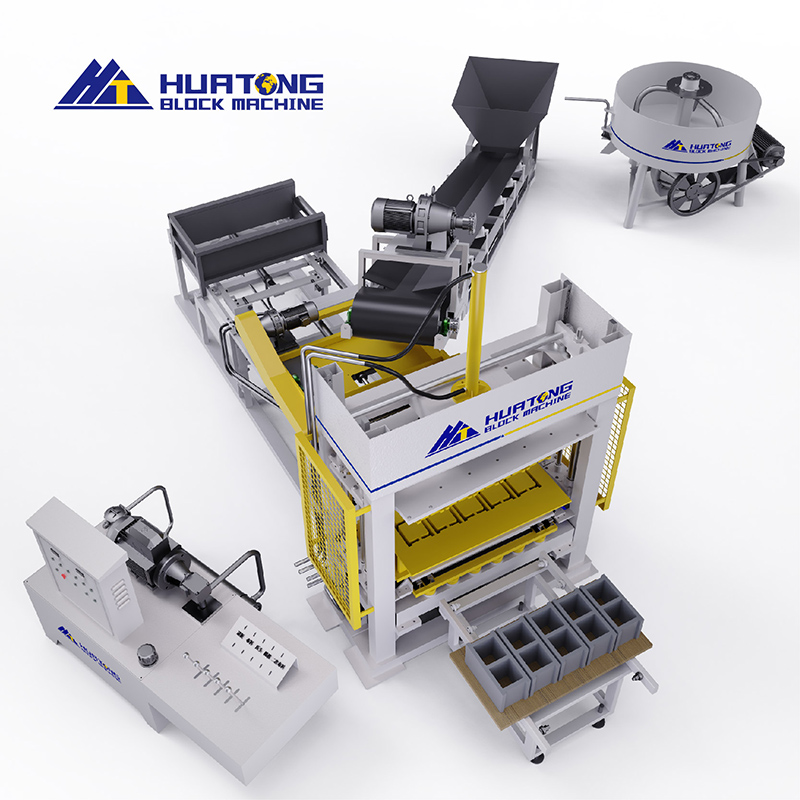

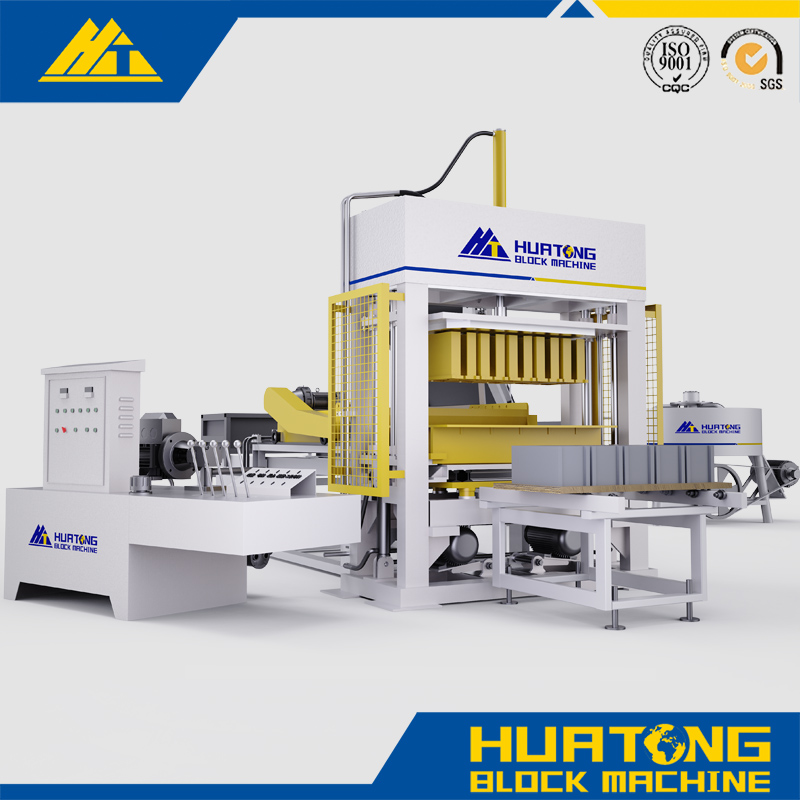

Brick Making Machine is one small model in our machines.The model is QT5-15Semi-automatic Brick Making Machine.It is suitable for small and middle brick making business.The pallet size of QT5-15Semi-automatic Brick Making Machine is 1150x580mm.It produces 5 pieces 400x200x200mm (8 inches) hollow block per mould.QT5-15Semi-automatic Block Making Machine is good for producing curbstone too.There is water cooler in hydraulic tank,so it can work in hot area.
Technical Parameters of QT5-15 Semi-Automatic Block Making Machine
| Dimension | 3000x1900x2930mm | Weight | 6000KGS | ||
| Pallet Size | 1150x580mm | Performance Standard | JC/T920-2011 | ||
| Mode of Vibration | Table Vibration | Vibration Frequency | 4200r/min | ||
| Vibration Force | 70KN | Cycle Time | 15-25Sec. | ||
| Hydraulic Motor | 7.5kw-4P | Vibration Motor | 5.5kw-2P x2 | ||
| Concrete Feeder Motor | 4kw-23-4P | Belt Conveyor Motor | 2.2kw-43-4P | ||
| Wet Block Conveyor Motor | 1.5KW-35-4P | Power | 26.2kw | ||
QT5-15 Semi-Automatic Block Making Machine Output Reference Table
| Product | Image | Size (mm) | Blocks per Mold | Forming Cycle | Daily Output (8 hours) |

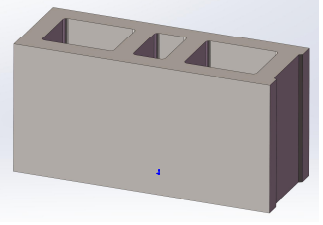

Hollow Block |  | 400×200×200 | 5 pcs | 15–20 s | 7200–9600 pcs |
Hollow Block |  | 400×150×200 | 6 pcs | 15–20 s | 8640–11500pcs |

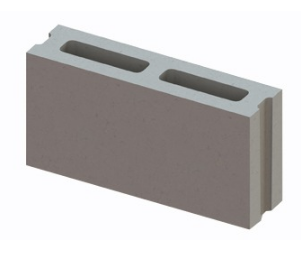

Hollow Block |  | 400×100×200 | 9 pcs | 15–20 s | 12960–17280 pcs |

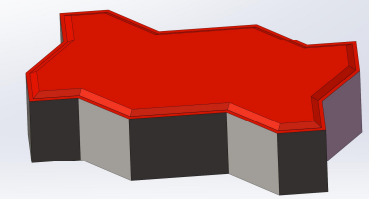

Paving Brick |  | 200×100×60 | 20 pcs | 15–25s | 23000–38400 pcs |
Paving Brick |  | 225×112.5×60 | 16 pcs | 15–25 s | 18400–30700pcs |
Products Details of QT5-15 Semi-Automatic Block Making Machine
 | |

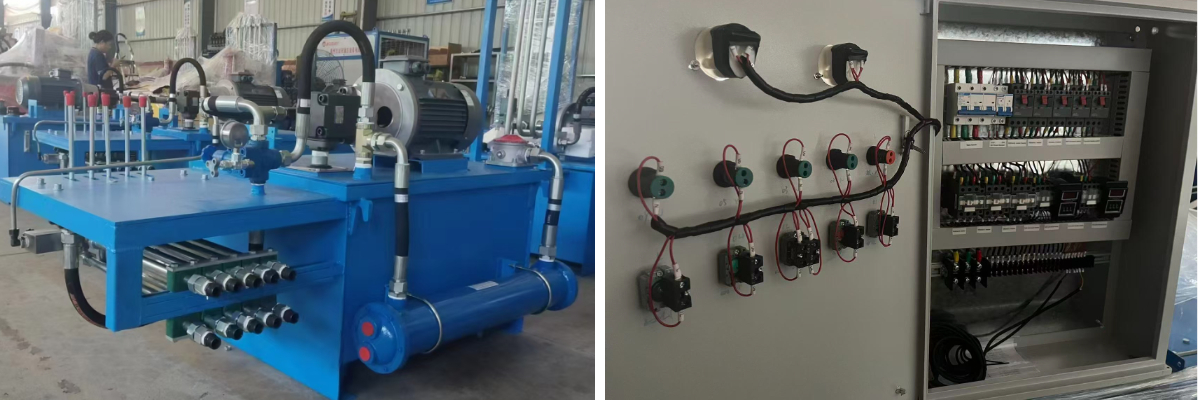

| The machine adopts large hydraulic pump,mould goes up and down quickly,block moulding,concrete feeding and pallet feeding works one after another instantly. | QT5-15Semi-automatic Block Making Machine is operated worker.belt conveyor and concrete feeder shafts work automatically.It is easy to control and low failure rate. |
|  |

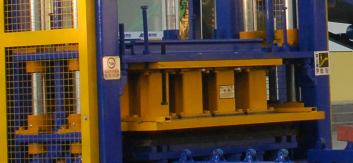

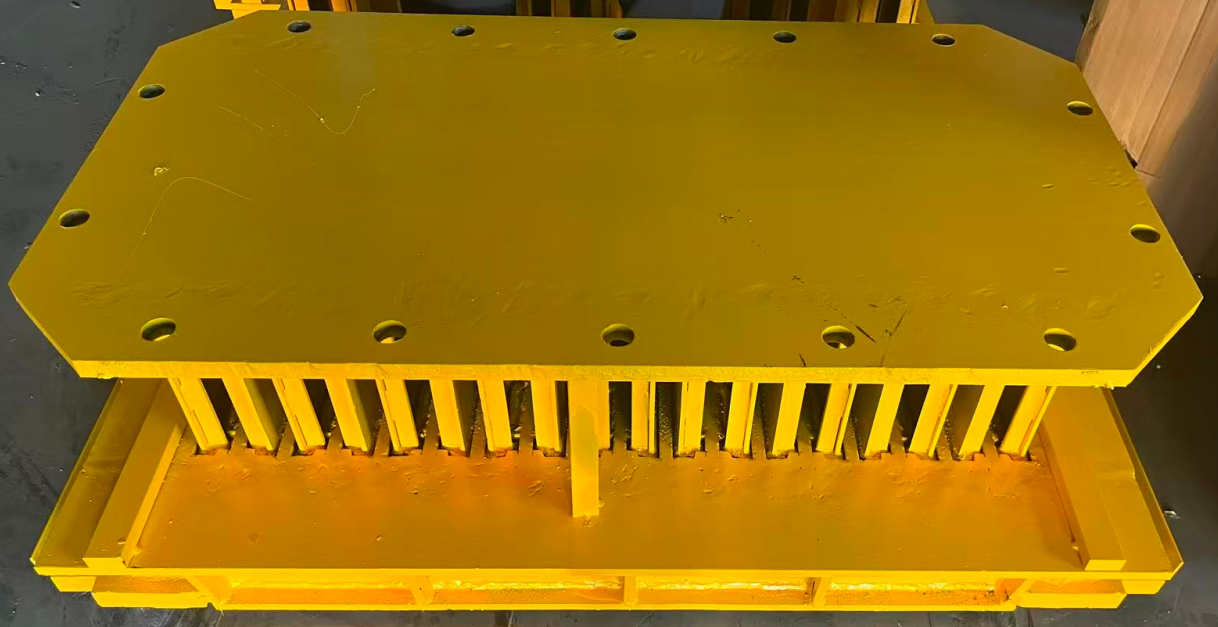

| QT5-15Block Machine can produce hollow block,solid block,paving block and curbstone by changing mould. | Mould quality is good.Mould have heat treatment,carbonrization,quenching during production. |

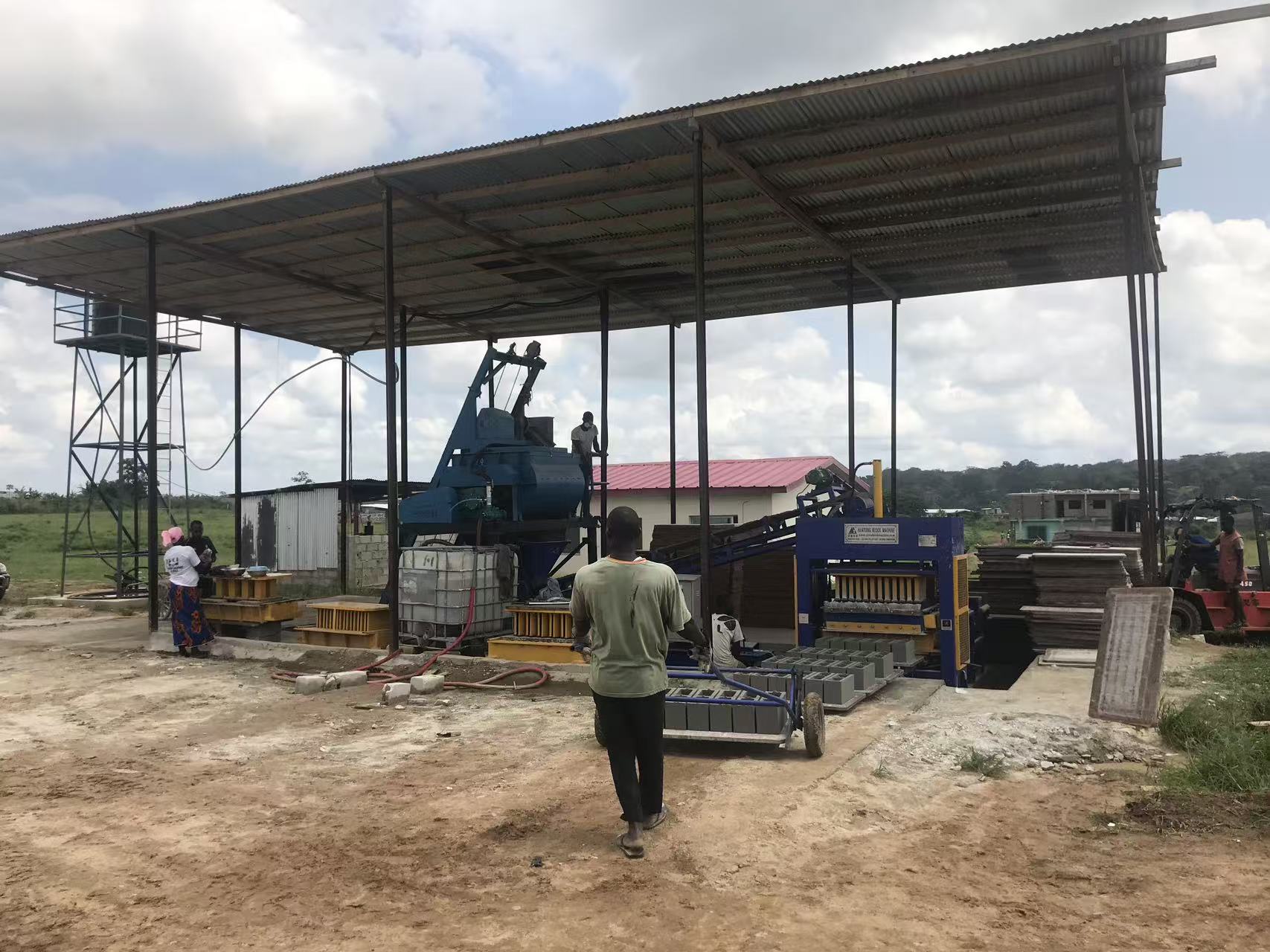

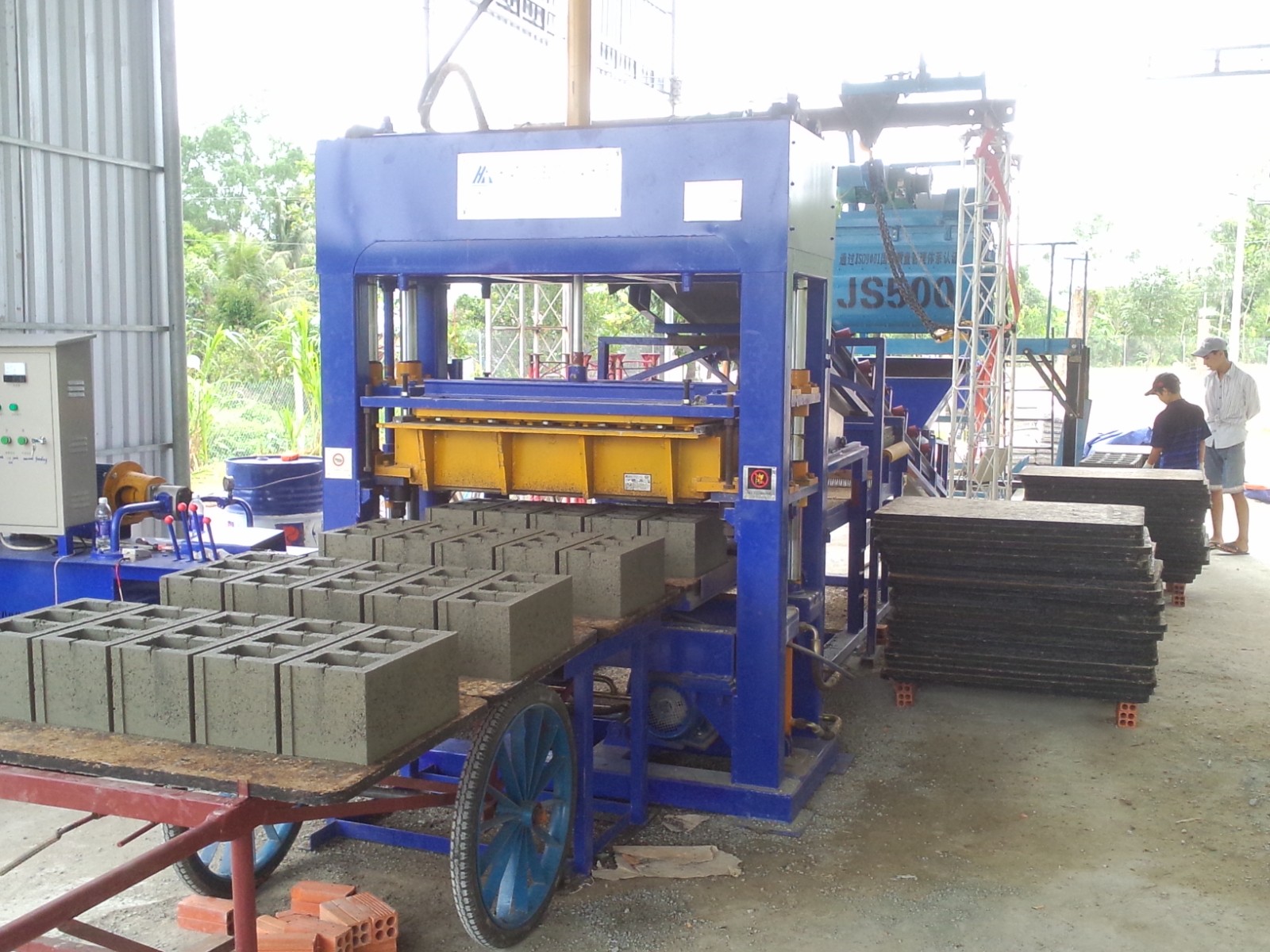

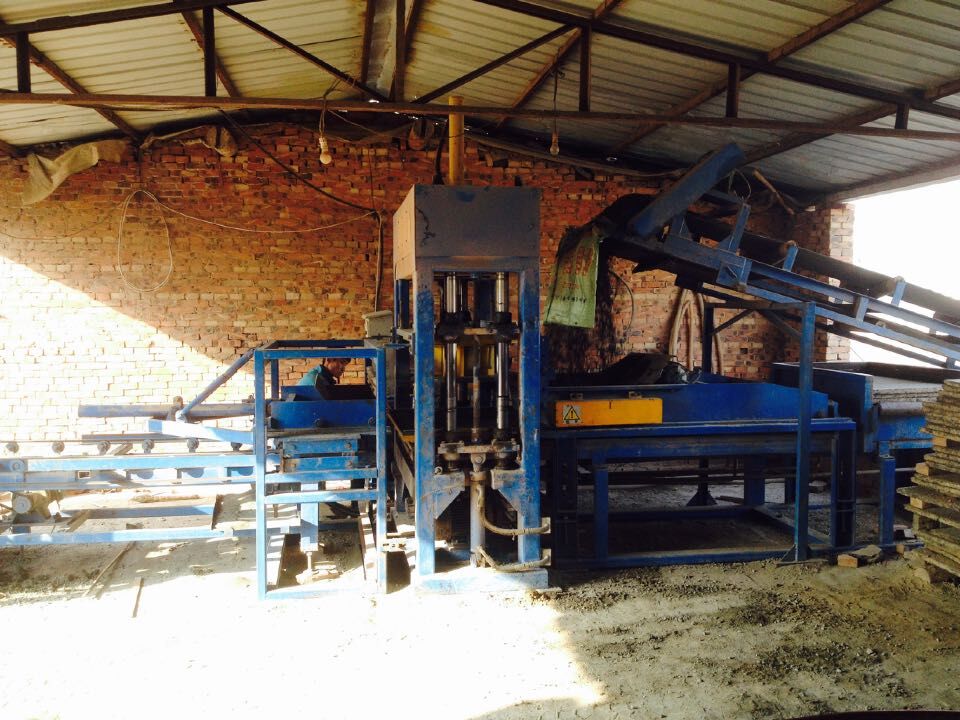

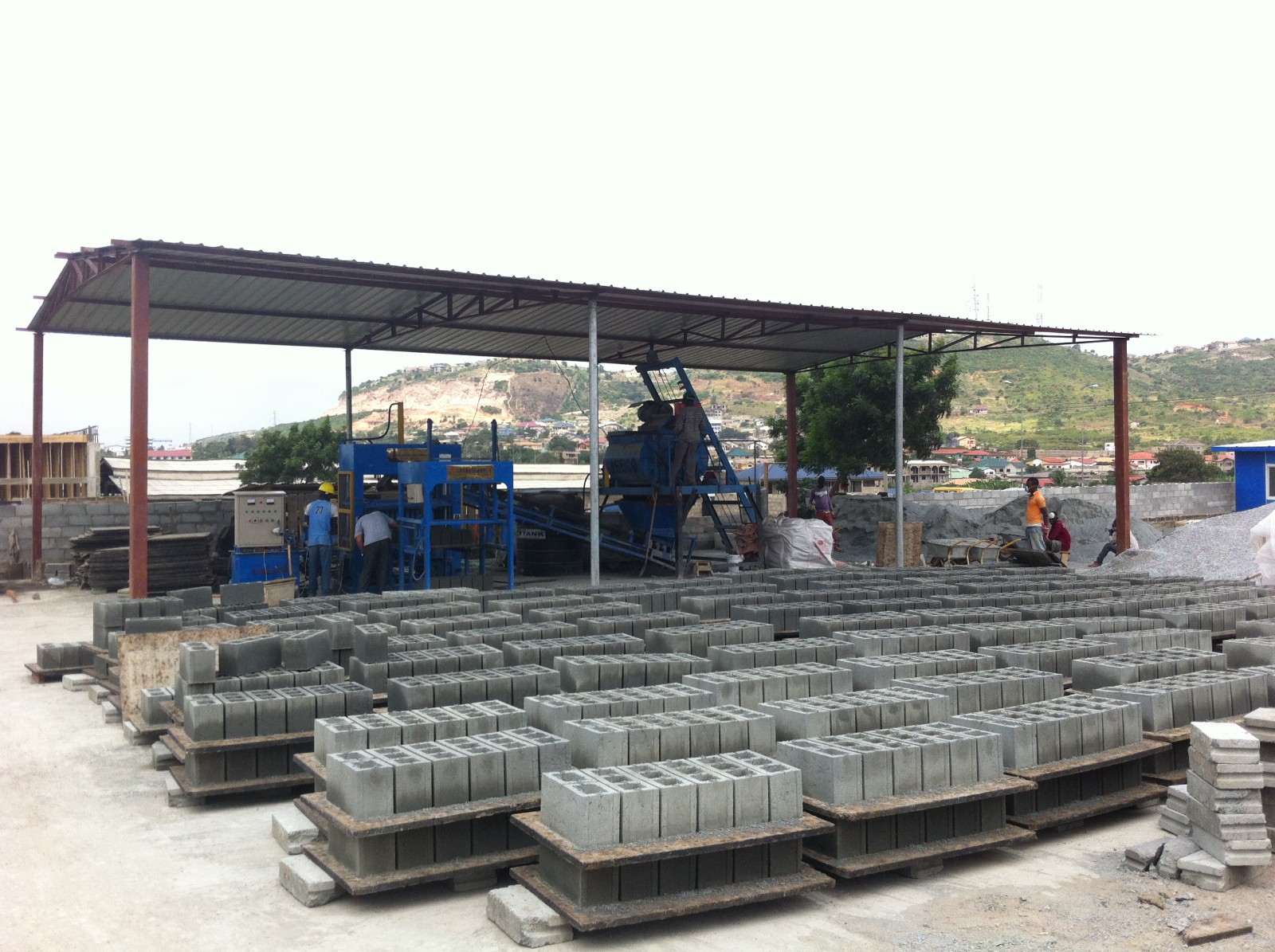

Customer Case of QT5-15 Semi-Automatic Block Making Machine
Ghana |
Cote d'Ivoire |
|
South Africa |
Working Video of of QT5-15 Semi-Automatic Block Making Machine
