Raw Materials of QT5-15 Brick Making Machine

The QT5-15 brick making machine with German frequency conversion technology generally uses stone powder, fly ash, furnace slag, ore slag, crushed stone, sand, water and other materials as raw materials.

It uses crushed stone powder, sand, gravel and cement, and can add a large amount of industrial wastes such as fly ash, furnace slag, steel slag, coal gangue, ceramsite, perlite, etc.

Production Capacity of QT5-15Automatic Block Making Machine

Technical Parameter of QT5-15Automatic Block Making Machine

Multi-function in One Machine

German Frequency Conversion Technology Adopted by QT5-15 Brick Machine

• Improves production efficiency

• Enhances product compactness

• More energy-saving, eco-friendly and reduces power consumption by 30%

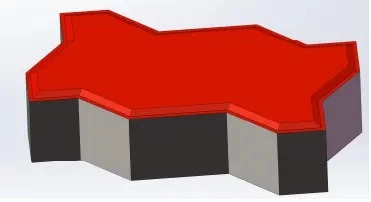

• Can be equipped with a color fabric feeding device to produce colored pavement bricks of various specifications

Performance and Characteristics of QT5-15 Brick Machine

1. Adopting advanced German block machine technology, the machine is solid and stable, with a weight 30% higher than domestic models of the same output, and features remarkable shock absorption effect.

2. Equipped with a computer control system and LCD touch screen for parameter adjustment, together with data input and output devices to realize human-machine interaction.

3. The computer control system is equipped with a self-locking function: the next action cannot be executed if the previous one is not in place, preventing misoperations and equipment damage. Remote fault diagnosis can be realized via telephone line.

4. The machine body adopts thick-walled square tubes and extra-long guide sleeves, ensuring firmness, shock resistance and precise movement of the press head.

5. Extremely low center of gravity, with the vibration table 486mm above the ground, ensuring 90% of residual vibration is transferred to the ground and prolonging service life.

6. Excellent synchronization. Adjustable synchronous swing arms are installed on both the press head and demoulding frame, ensuring the error of pressing and demoulding within ±1mm.

7. Wide product range. Equipped with a secondary feeding device, it can produce hollow blocks, multi-row porous bricks, hollow bricks, curbstones, split blocks, colored pavement bricks, grass-planting bricks, washed bricks and other products.

8. Vibration-pressure separation technology. A vibration support plate, auxiliary press head and shock-absorbing rubber pads are installed to completely isolate vibration-pressure interference.

9. Adopts Taiwan-made hydraulic valves and coolers, ensuring reliable operation of the hydraulic system and low failure rate.

10. Equipped with a claw-type forced discharging device, thoroughly solving the difficulty of discharging thin-walled products (wall thickness less than 20mm).

11. The vibration main shaft is driven by a universal joint drive shaft, ensuring accurate transmission speed, long service life and avoiding frequent belt replacement in belt drive.

12. All models are equipped with frequency converters, realizing non-stop rotation of the main shaft motor and fundamentally solving the problem of motor overheating.

13. The only manufacturer in the industry adopting a vibration force adjustment system. Each main block machine has adjustable multi-level vibration force, shortening vibration time, improving product compactness and saving cement.

14. Adopts a sleeve-integrated frame adjustment system. All parameters can be adjusted by rotating 2 lead screws and adjusting the distance of proximity switches.

15. Strong exciting force with an amplitude of 2mm and excitation acceleration of 15g, enabling rapid material forming in about 2 seconds, full cement liquefaction, and a one-grade higher product strength under normal weight ratio.

Technical Features of QT5-15 Brick Machine

• Imported high-efficiency hydraulic proportional system with genuine components (higher efficiency and energy saving)

• Imported intelligent PLC touch screen and genuine electrical components (high automation, easier operation)

• Arch-breaking rapid feeding device (especially favorable for uniform feeding of porous bricks)

• Extended high-efficiency vibration technology (shorter forming time, higher product compactness)

• Special high-temperature heat treatment process (more wear-resistant and durable molds)
