Fully Automatic Hydraulic Brick Press

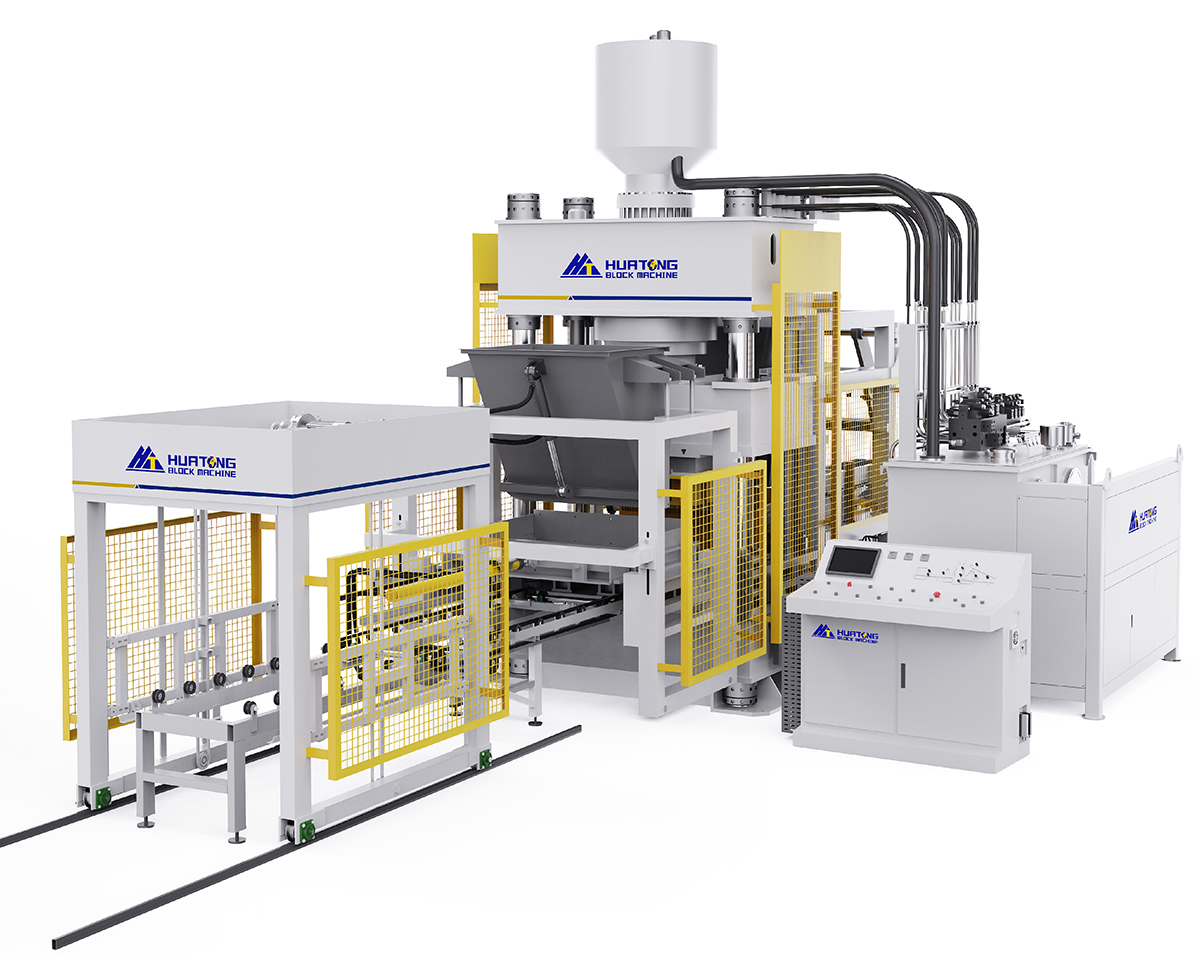

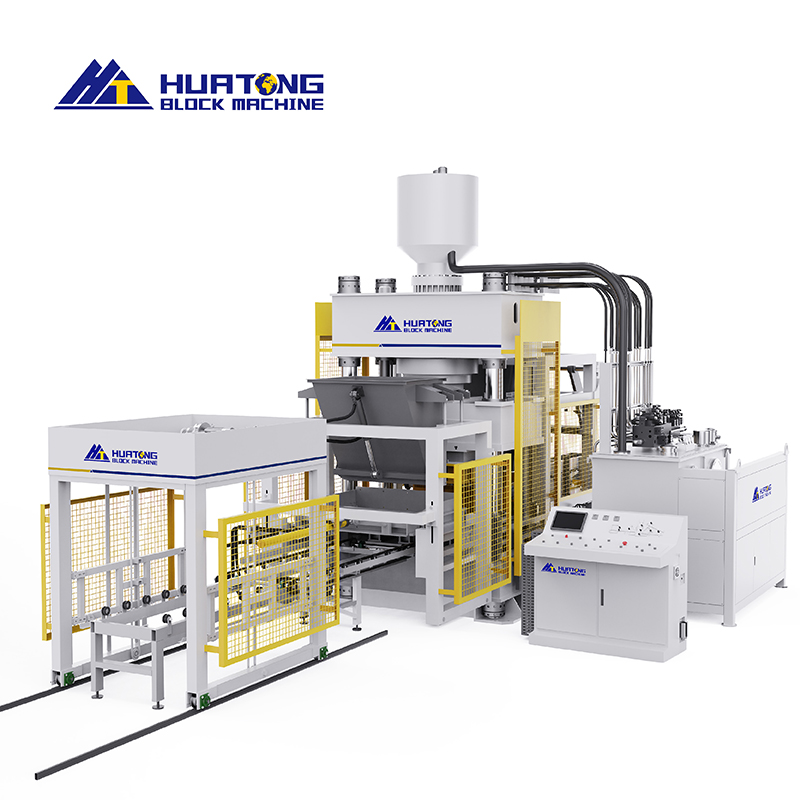

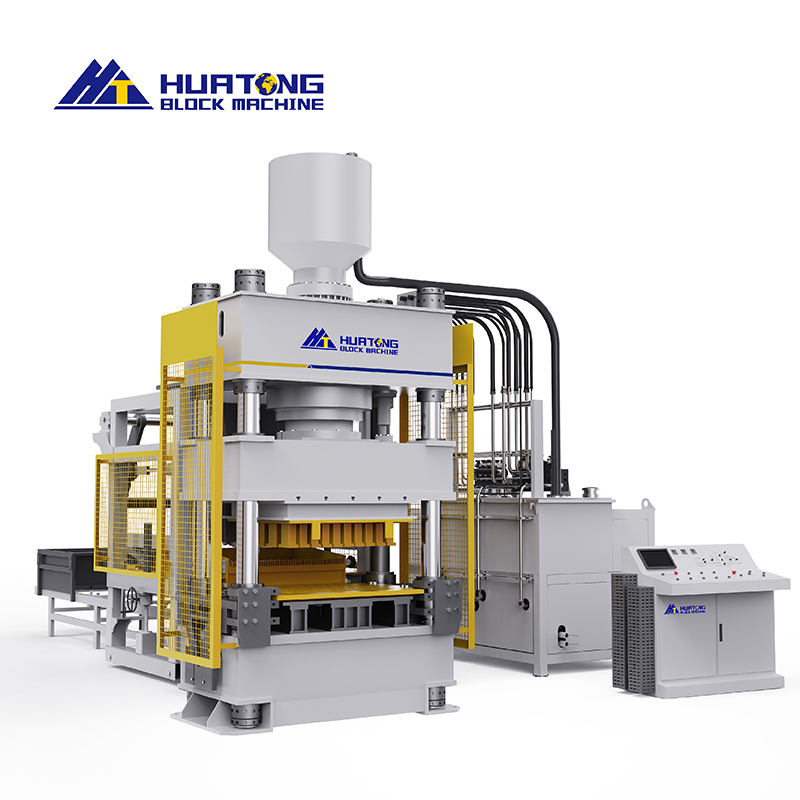

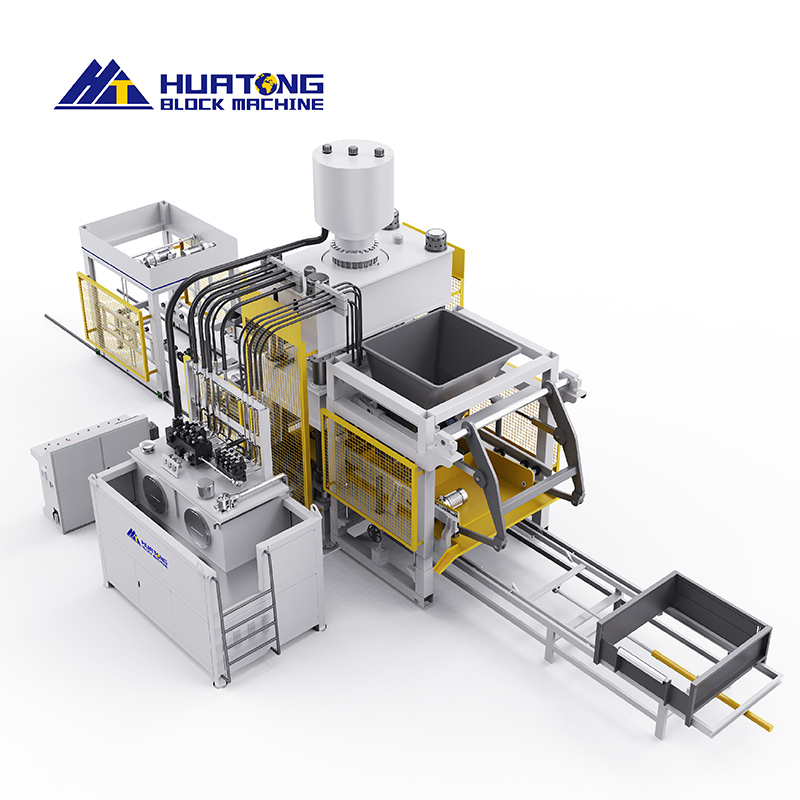

HT600 Fully Automatic Hydraulic Brick Press  Independently researched and developed by our company, the HT600 Fully Automatic Hydraulic Brick Press is a new-type brick-making machine that combines high-pressure brick presses with vibration hydraulic models. It addresses the issues of low mid-block density and vibration noise, and adapts to multiple raw materials. With low noise, low investment and high profitability, it has won wide acclaim from clients. Rigorously tested, the HT600 delivers outstanding performance including high pressure, fast processing speed and low operating noise. Meeting environmental protection standards fully, it is the preferred equipment for large-scale eco-friendly brick production enterprises striving for high efficiency and sustainable development.

Below are the Production Capacity for the HT600 model

HT600 Model Production Capacity
Product Type	Image	Size(mm)	Per Molding	Cycle Time	Daily Output (10 hrs)
Standard Brick		238x114x50mm	32 pcs	15-20s	57600-76800
Paving Block		200x100x60mm	25 pcs	15-20s	45000-60000
Paving Block		230x115x60mm	16 pcs	15-20s	28800-38400

Below are the Technical Parameter for the HT600 model

Product Details

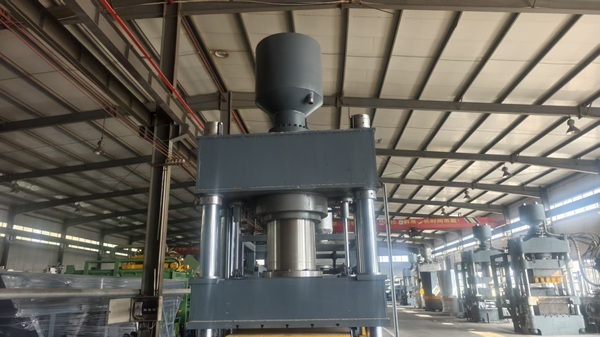

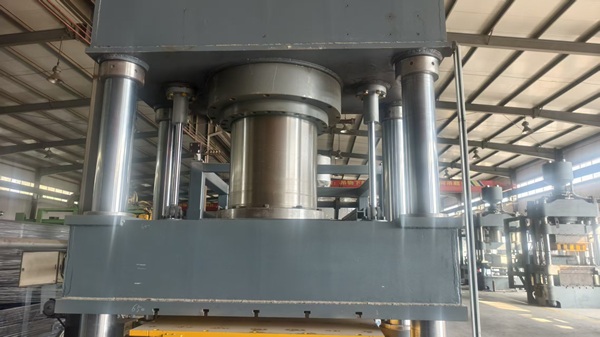

	Composite Structure of Rapid Cylinder: Adopts the "small oil cylinder embedded in large oil cylinder" design. During operation, high-pressure oil is first injected into the small oil cylinder. Taking advantage of the characteristic that the effective area of the small oil cylinder is smaller than that of the large oil cylinder, it drives the large oil cylinder to extend rapidly, realizing long-stroke and fast pushing, and significantly improving production efficiency.
Top Oil Storage Bag Design: An oil storage bag is installed on the top of the large oil cylinder. Only a small flow of high-pressure oil provided by the hydraulic system is needed to meet the working requirements. This design has low energy consumption, which can directly reduce production costs; at the same time, it can prevent the hydraulic oil in the oil cylinder from heating up, effectively prolonging the service life of the oil cylinder.

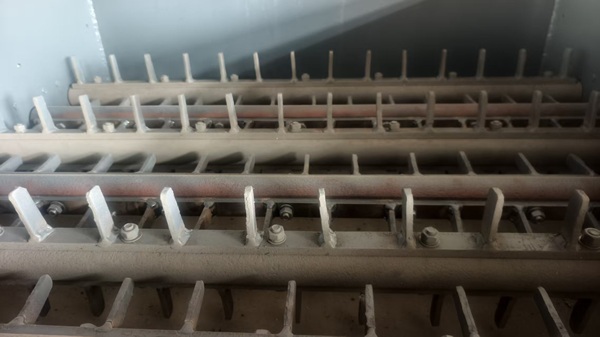

	360°Rotating Material Distribution System: Equipped with a material distribution box conveying device, it realizes 360° dead-angle-free rotating material distribution, making the material distribution more uniform and faster, and ensuring the consistency of brick billet forming.

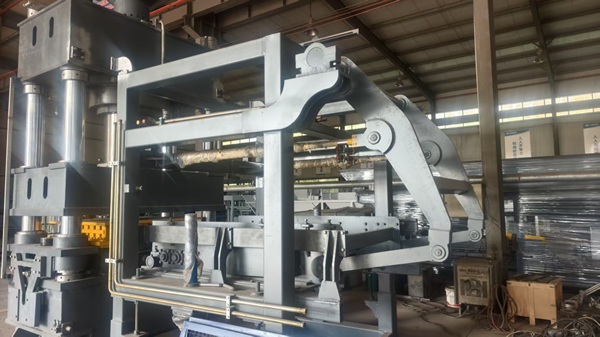

Bionic Crank Arm Type Double-Cylinder Material Distribution: Adopts a bionic crank arm structure combined with double-cylinder drive. It not only improves the material distribution speed, but also enhances the operation stability of the material cart, and greatly reduces the equipment failure rate.
	Patented Full-Process Auxiliary Vibration Technology: It is a patented design of Huatong Company. With the help of auxiliary vibration during the entire working cycle of the equipment, it can not only realize fast material distribution, but also increase the density of finished products and enhance the quality of brick billets.

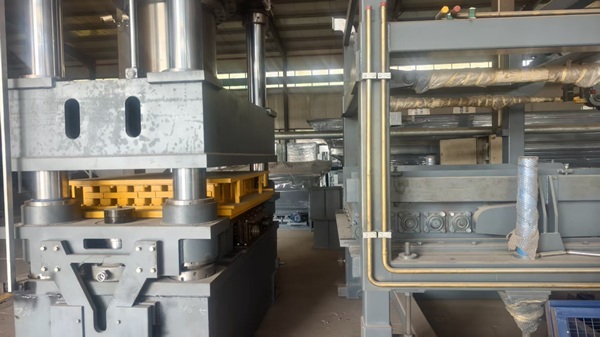

Split-Type Machine Body Structure: The equipment is designed to be detachable. When replacing molds or cleaning the internal part of the equipment, the machine body can be directly pulled apart for operation, making maintenance and cleaning more convenient and efficient.

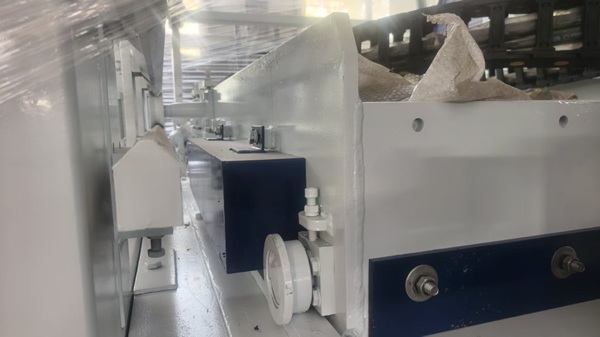

	Adjustable Track Wheels for Material Distribution Box: The track wheels support fine adjustment, which can optimize the operation stability of the material distribution box, accurately control the operation gap, and fundamentally avoid the problem of material scattering.

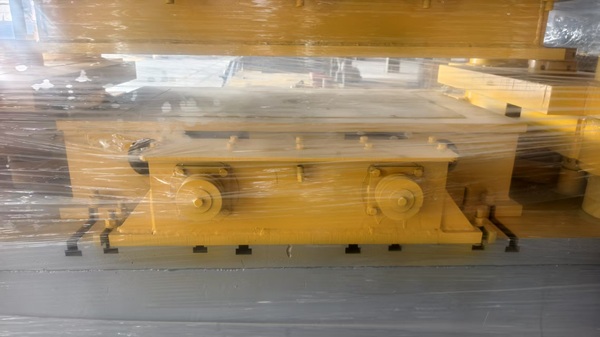

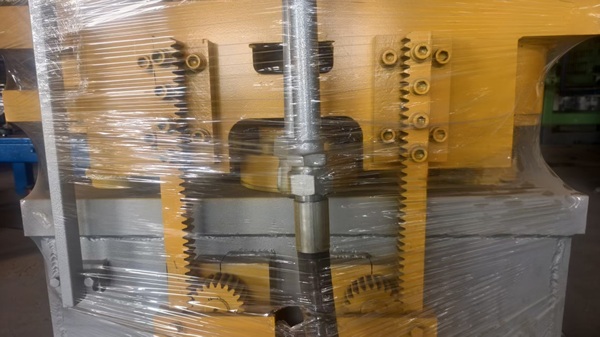

Balance Gear Mold Stabilization Design: Through the balance gear structure, it improves the stability of the mold during movement, ensures more standard dimensions of finished products, and reduces specification errors.

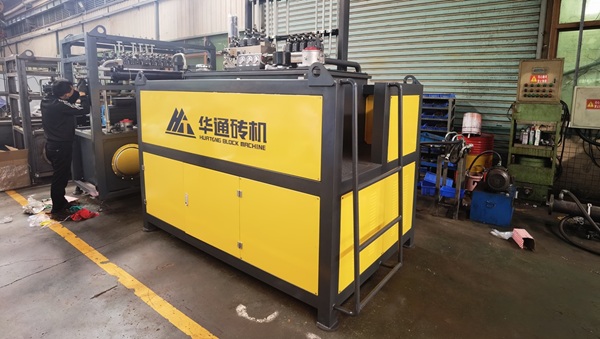

	Dual-Pump Intelligent Hydraulic System: Adopts a dual-pump parallel working mode, which can automatically adjust the oil supply method according to the actual working conditions. It outputs large flow during rapid movement and provides high pressure under high load. It not only improves the system response speed and work efficiency, but also reduces energy consumption, adapting to diversified production needs.

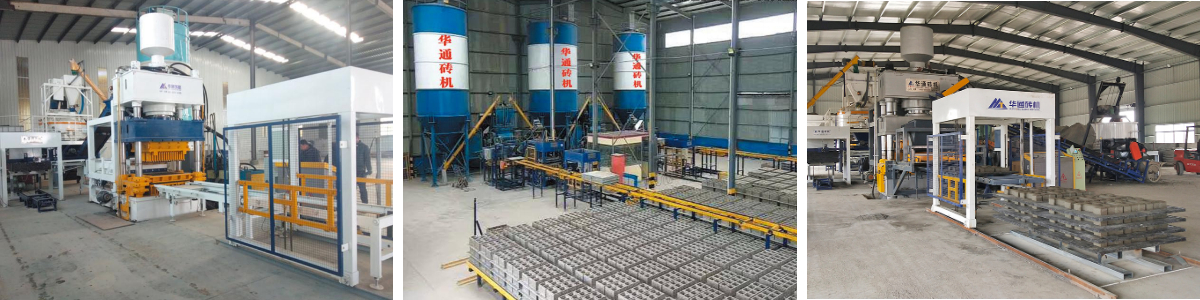

Equipment Production Site

Product Application Fields

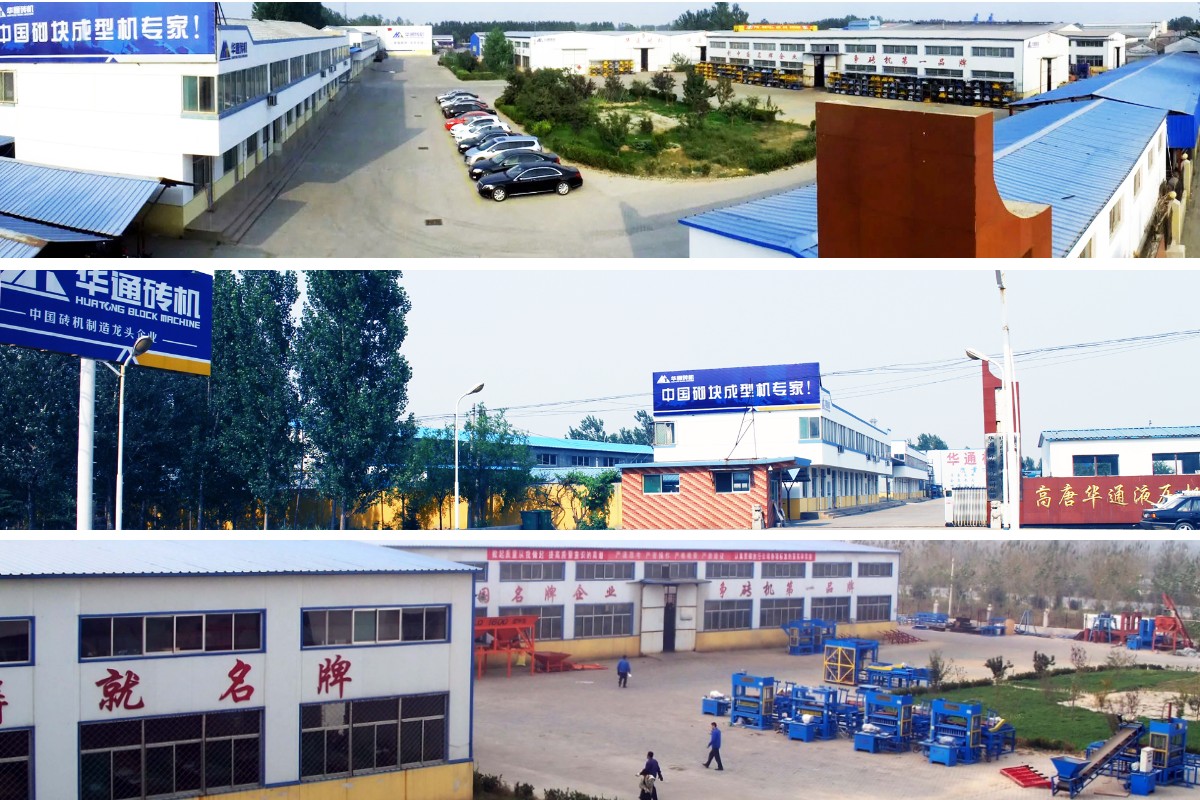

Founded in 2004 and based in Gaotang, Shandong, Shandong Huatong Hydraulic Machinery Co., Ltd. is a technology enterprise specializing in designing, developing, and manufacturing comprehensive utilization equipment for bulk industrial solid waste. Our product range includes intelligent production lines for automatic block forming machines, automatic static pressure forming systems, high-precision assembled gypsum blocks, aerated concrete blocks, and vertical shaft planetary mixing stations. We also provide customized waste solutions and operational services. Supported by subsidiaries including Huatong Machinery, Avante Machinery, Darun Environmental Protection, and Cote d'Ivoire Shandong Group Company, we employ over 270 skilled engineers and technicians dedicated to delivering innovative and sustainable industrial equipment.

International clients visited our company for on-site inspections and engaged in in-depth discussions regarding product cooperation and quality details. We highly value every communication with our global partners and are committed to providing reliable products and professional services.

The following are some of the honors, qualifications, and certifications our company has received, which demonstrate our commitment to quality and professionalism.

FAQ

1. What’s the hourly output range?

Small models produce 5，700-7，600 bricks/hour; large industrial ones make 11，000-13，500, depending on brick size and automation level.

2. Does brick size affect output?

Yes, larger bricks reduce hourly count—e.g., a machine making 3,000 standard bricks/hour may produce 1,800 large hollow blocks.

3. Can it maintain consistent quality at high output?

Yes, static pressure ensures uniform density across batches, with minimal variation, critical for meeting construction standards.

4. How to maximize daily production?

Optimize material supply, reduce mold change time, and schedule maintenance during off-hours to minimize downtime.
