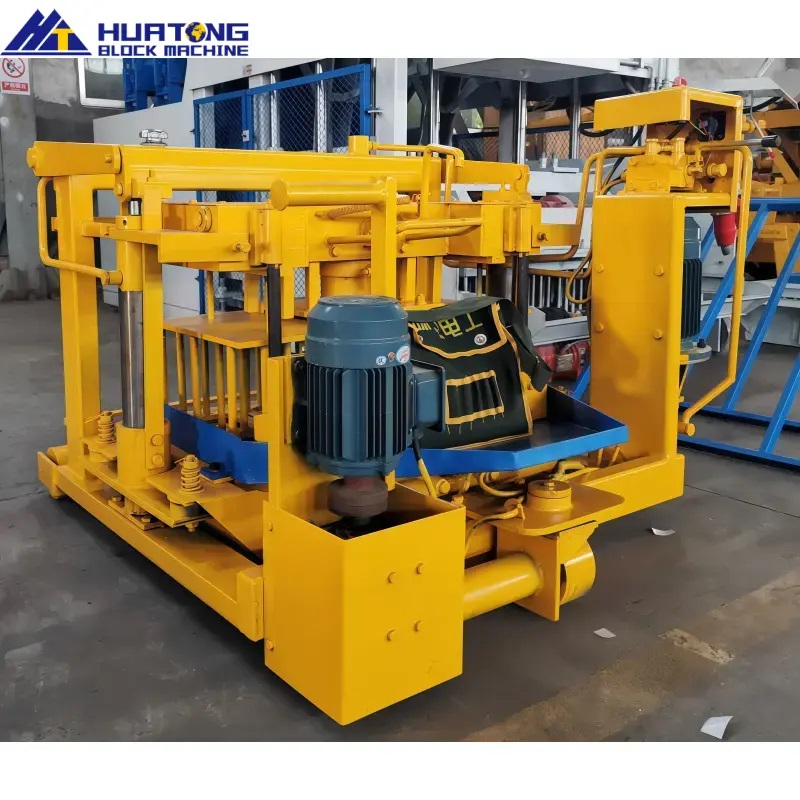

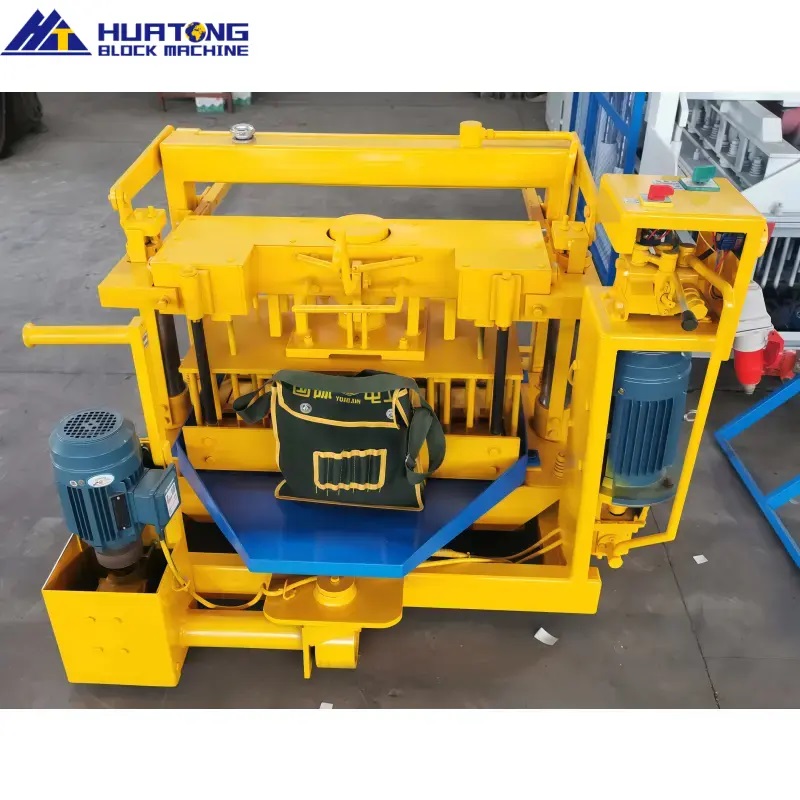

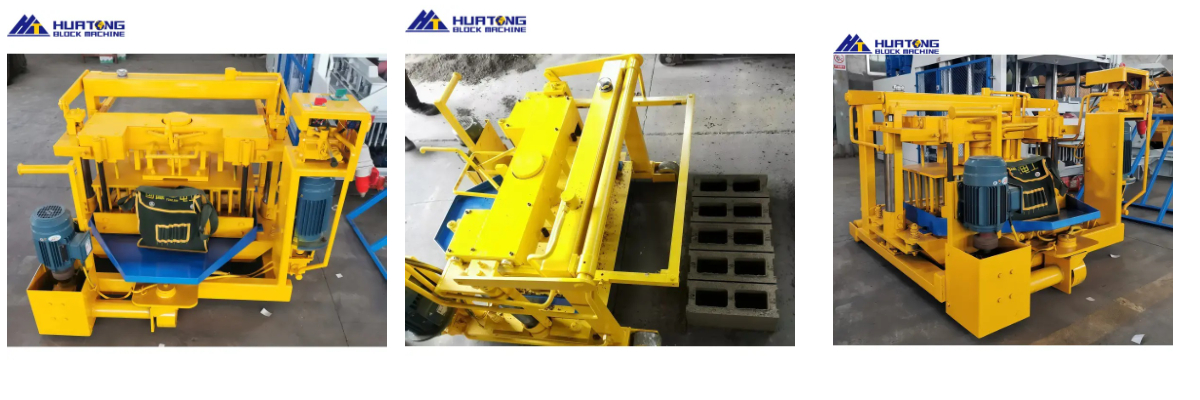

Mobile Brick Making Machine
The advanced technology makes the design of the host reasonable, and realizes the vibration of the box, hydraulic demoulding, electric walking, and auxiliary steering, which can be easily mastered by one person. High-quality steel and precision welding make the machine last longer.
it has the advantages of low price, reliable performance, convenient operation, stable, low power consumption (only equivalent to the same output power of the machine power consumption of 1/5), raw materials, production process can use concrete, cement, small stones, stone powder, sand, slag, construction waste, etc.
It boasts higher productivity than other small block making machines. This brick machine is based on our company's original block forming machine, incorporating advanced foreign technology, years of real-world customer feedback, and our extensive experience in manufacturing mobile brick machines. It represents a relatively mature model. This mobile brick machine offers numerous advantages, including a more rational design, convenient operation, high forming rate, low maintenance rate, low noise, and low energy consumption. It surpasses other similar mobile brick machines.
Product Specifications
| Serial Number | Name | Parameters |
| 1 | Overall Dimensions（mm） | 1500*1300*1100 |
| 2 | Working Pressure of Hydraulic System | 12-14 MPa |
| 3 | Molding Method | Hydraulic + Vibration |
| 4 | Power | 5 kW |
| 5 | Overall Weight | 880 kg |
| 6 | Daily Output | 3840/8h |
| 7 | Tank Capacity | 10.6 liters |
| 8 | Vibration Mode | Three-dimensional Vibration Mode |
| 9 | Driving Mode | Hydraulic Transmission |
| 10 | Walking Mode | Electric Walking, Manual Steering |
| 11 | Raw Materials | Cement, crushed stone, aggregate, sand, coal gangue, slag, steel slag, fly ash, sandstone, construction waste, etc. |

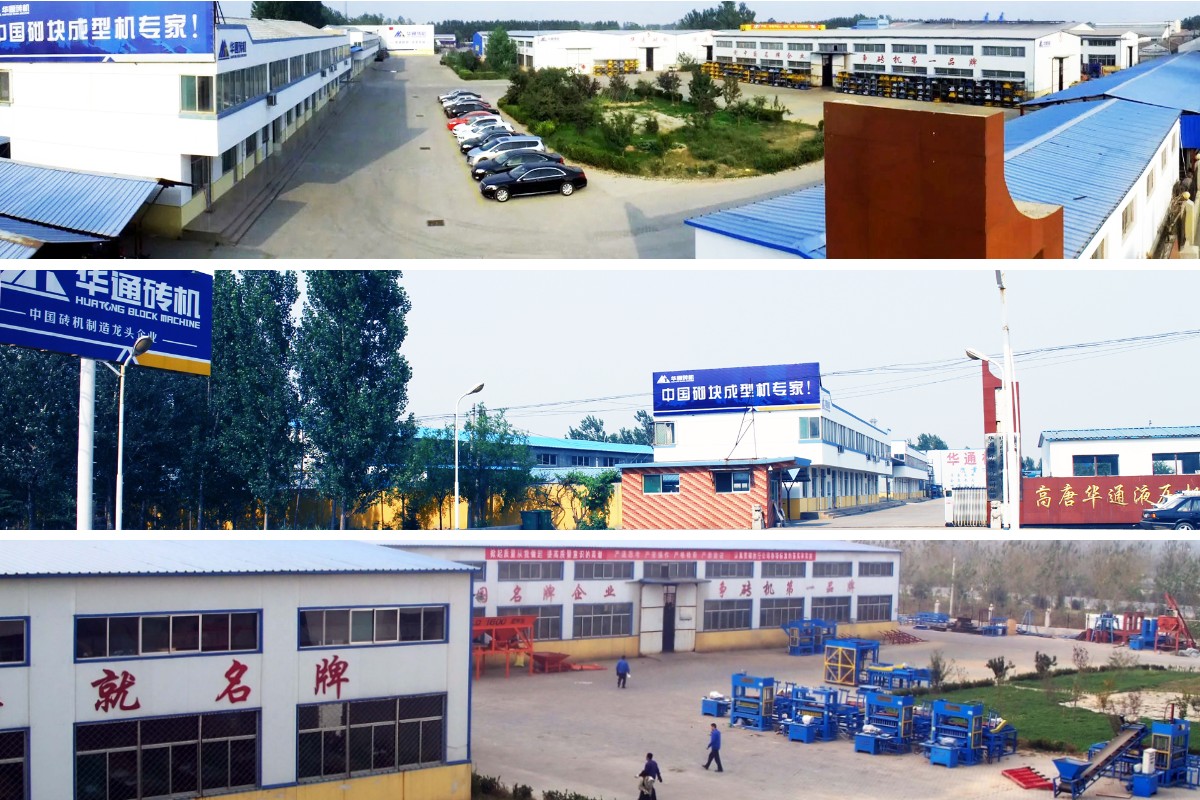

Founded in 2004 and headquartered in Gaotang County, Shandong Province, Shandong Gaotang Huatong Hydraulic Machinery Co., Ltd. is a high-tech enterprise specializing in the design, research and development, and manufacturing of equipment for the comprehensive utilization of bulk industrial solid waste. Our products encompass intelligent production lines, including fully automatic block molding machines, fully automatic static pressure molding systems, high-precision gypsum block assembly lines, aerated concrete block production lines, and vertical shaft planetary mixing plants. In addition, we provide customized waste treatment solutions and operational services. The company has subsidiaries including Huatong Machinery, Aifan Machinery, Darun Environmental Protection, and Shandong Group Co., Ltd., located in Côte d'Ivoire. We have over 270 highly skilled engineers and technicians dedicated to providing innovative and sustainable industrial equipment.
Customers from all over the world visited our facilities for on-site inspections and engaged in in-depth discussions regarding product collaboration and quality details. We highly value every communication with our global partners and are committed to providing reliable products and professional services.
FAQ
What raw materials can the QMJ4-30 Hydraulic Block Machine use?
It can process a variety of raw materials, including cement, gravel, stone, sand, gangue, slag, steel slag, fly ash, sandstone, and construction waste.
What are the key technical parameters of this block machine, such as overall size and daily output?
Its overall size is 1500*1300*1100 mm, the daily output (based on 8-hour operation) is 3840 pieces, the working pressure of the hydraulic system is 12-14 MPa, and the power is 5 kW.
What advantages does this mobile block machine have compared with other small block making machines?
It has higher productivity, more reasonable design, easy operation, high forming rate, low maintenance rate, low noise, and low energy consumption (only 1/5 of the energy consumption of machines with the same output power). It also adopts advanced foreign technology and integrates years of mobile block machine manufacturing experience.
Is after-sales service available for the QMJ4-30 Hydraulic Block Machine, and what forms does it include?
Yes, after-sales service is provided, including online support. Additionally, factory direct sales and fast shipping services are available, and the machine comes with a 1-year warranty.
How does the QMJ4-30 Hydraulic Block Machine achieve movement and operation, and how many operators are needed?
It adopts electric walking and manual steering for movement. The operation realizes box vibration, hydraulic demolding, electric walking, and auxiliary steering through advanced technology. Only one person can easily master the operation.
