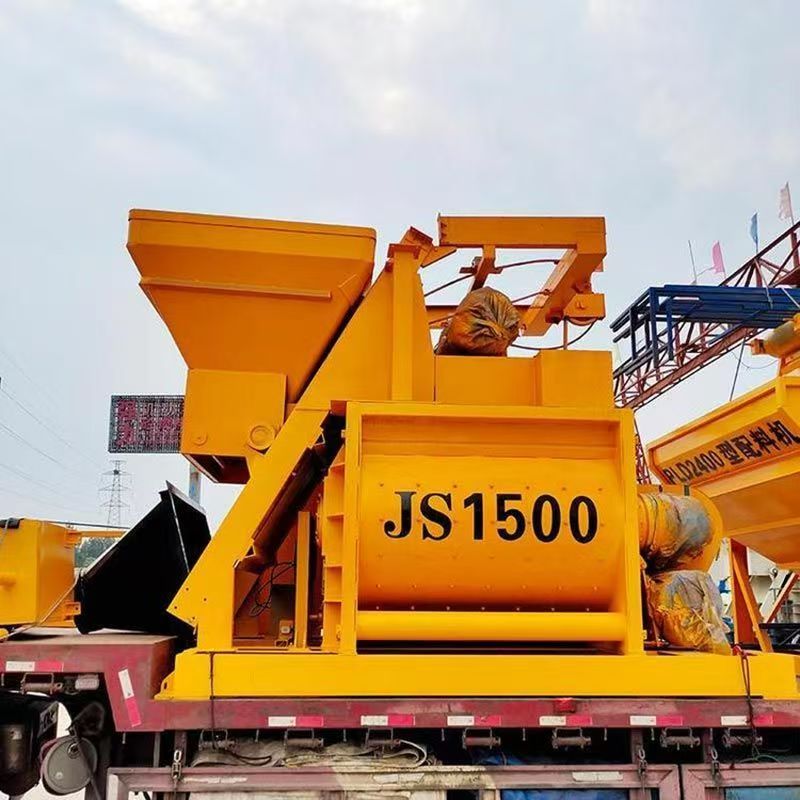

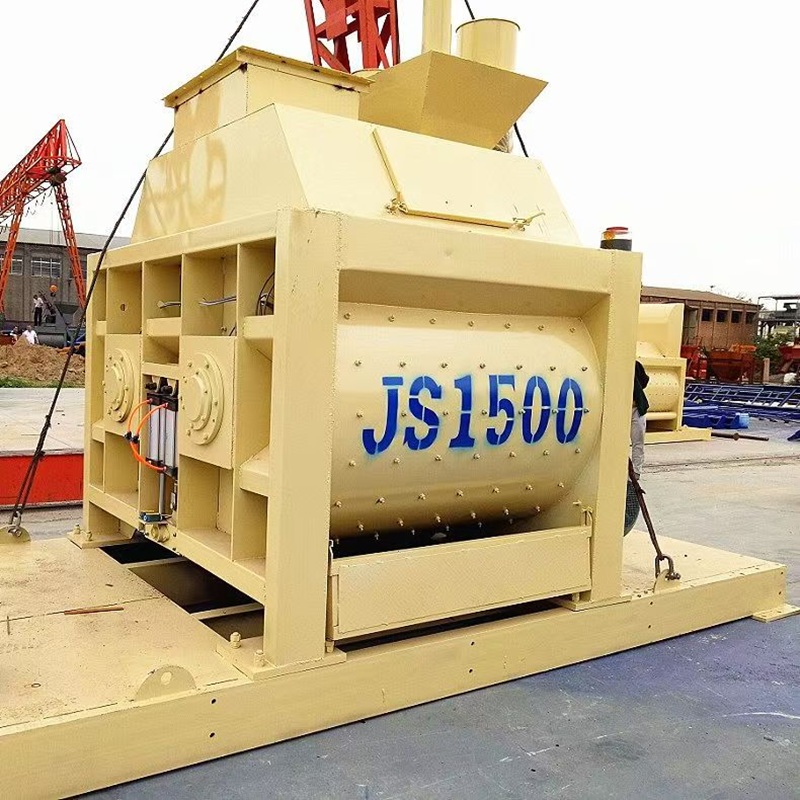

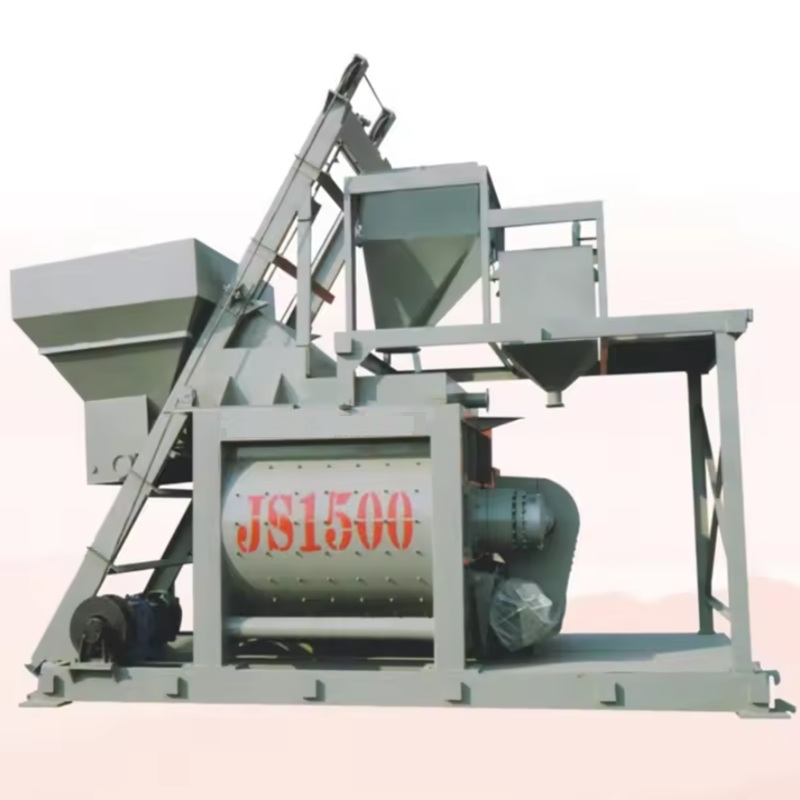

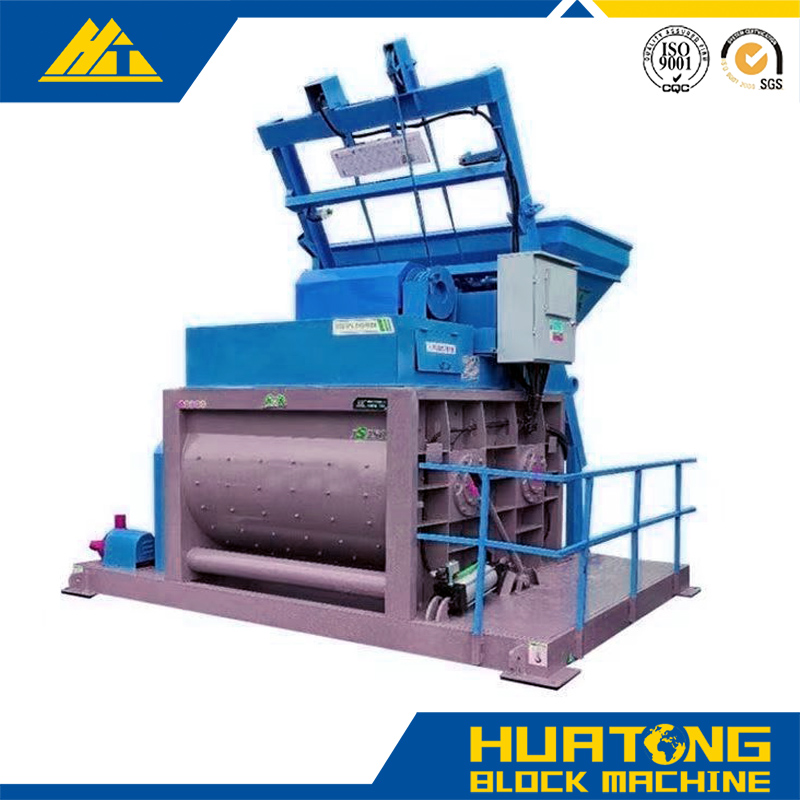

The JS1500 Twin-Shaft Compulsory Concrete Mixer, a high-performance Concrete Mixer, enhances blending precision via advanced twin-shafts.It delivers comprehensive, consistent mixing for dense substances—outdoing standard Cement Mixers in homogeneity, which is vital for large projects and brick-making lines.
As a heavy-duty Cement Mixer, the JS1500 boosts productivity for intensive construction with faster cycles than smaller models. For buyers looking for a Concrete Mixer For Sale to support high-output brick production, its large capacity and efficiency make it a perfect fit.
| Model | JS1500 | |
| Discharging Capacity (L) | 1500 | |
| Feeding Capacity (L) | 2400 | |
| Productivity (m³/h) | ≥75 | |
| Maximum Aggregate Size (Gravel/Crushed Stone) (mm) | 80/60 | |
| Mixing Blade | Rotation Speed (r/min) | 25.5 |
| Quantity | 2 X 10 | |
| Mixing Motor | Model | Y225M-4 |
| Power (KW) | 45 | |
| Hoist Motor | Model | YEZ180L-4-B5 |
| Power (KW) | 18.5 | |
| Water Pump Motor | Model | KQ65-100 1 |
| Power (KW) | 3 | |
| Hopper Lifting Speed (m/min) | 23 | |
| Overall Dimensions (Length×Width×Height) | Transport State | 5058X2250X2440 |
| Working State | 9645X3436X9700 | |
| Overall Mass (kg) | 11130 | |
| Discharging Height (mm) | 3800 | |

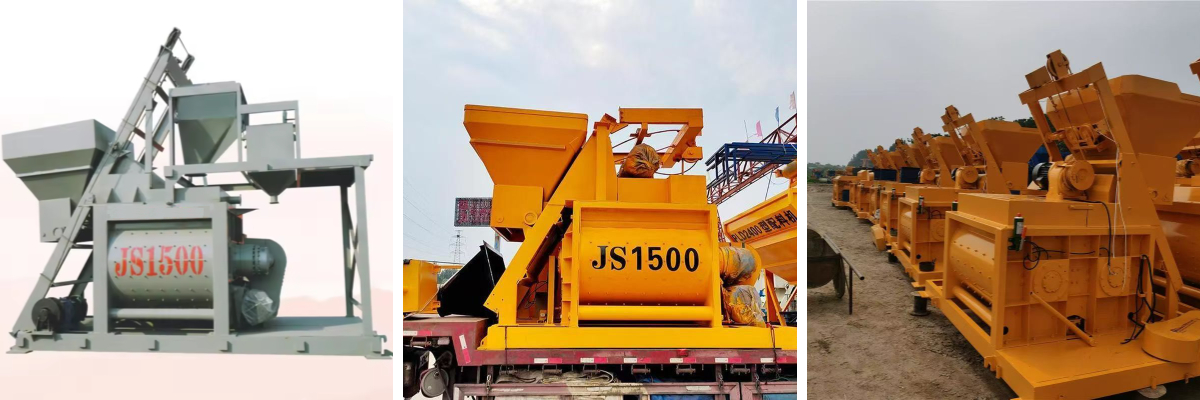

Product details display
 | Made of high-quality thickened reinforced steel, the twin-shaft concrete mixer’s core components are rigid, wear-resistant, and deformation-resistant—even under prolonged heavy loads. Heat-treated and precision-rolled, the steel withstands abrasive mixing and cyclic stress, avoiding flexing or warping for consistent, long-lasting performance. |

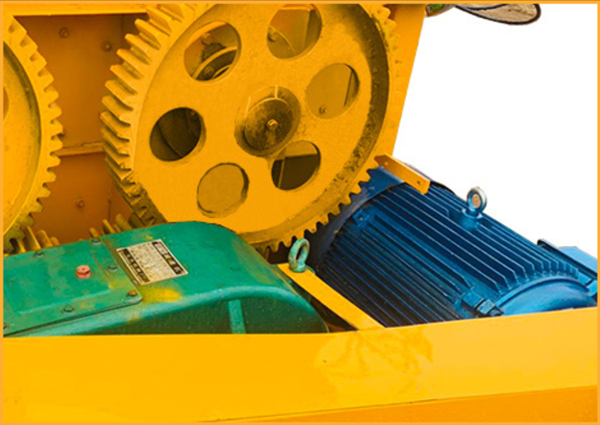

All-copper motor: Equipped with a premium all-copper winding motor, it boasts excellent high-temperature resistance, enabling continuous long-lasting operation without overheating or burnout. The all-copper construction enhances heat dissipation and electrical conductivity, effectively withstanding harsh working conditions and cyclic loads, ensuring reliable performance and extended service life. |  |

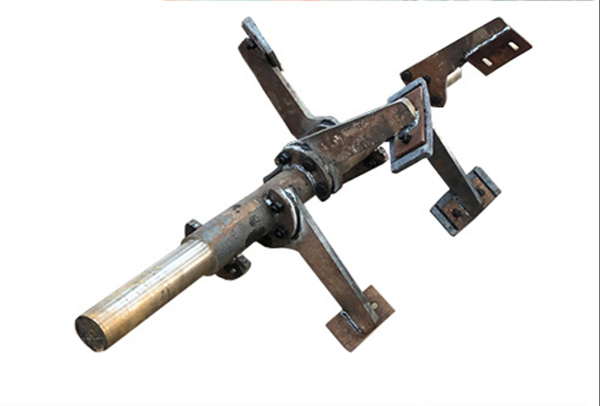

 | Thickened solid shaft: Adopts a stainless steel thickened solid shaft design, featuring enhanced rigidity and torque transmission capacity for more uniform, efficient mixing. The corrosion-resistant stainless steel and thickened solid structure ensure durability, withstanding heavy loads to maintain stable mixing performance. |

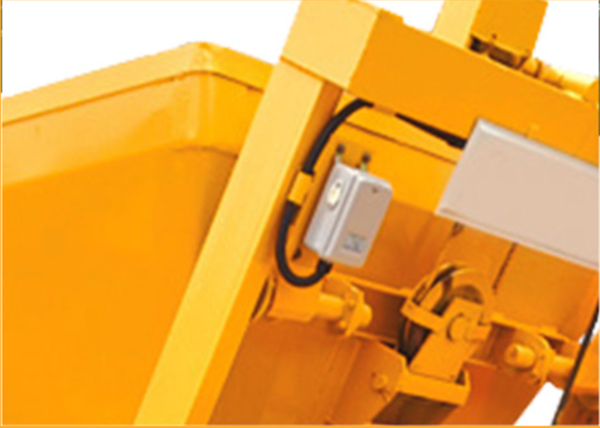

| Rising limiter: Equipped with a reliable rising limiter, it effectively prevents the hopper from hitting the top and delivers strong operational stability. The precision-designed limiter ensures sensitive response and stable performance, safeguarding equipment safety during hopper lifting. |  |

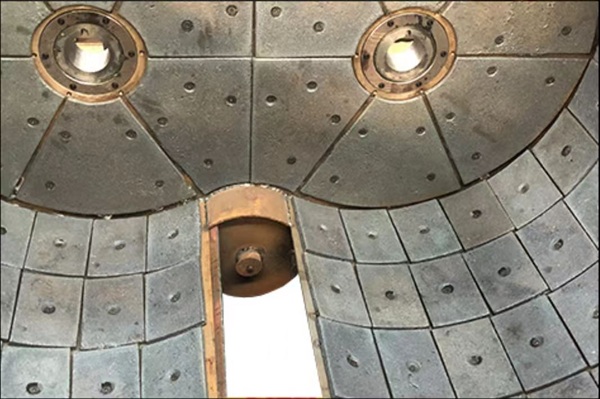

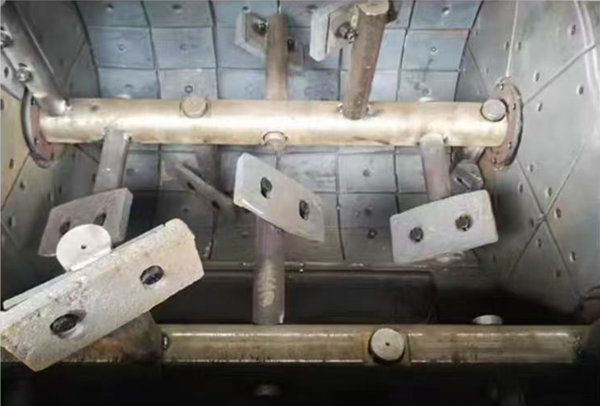

 | Mixer lining & blades: Undergoes precision machining and premium material selection, enhancing wear resistance and mixing efficiency. The carefully chosen materials and precise processing ensure long service life and consistent mixing results. |

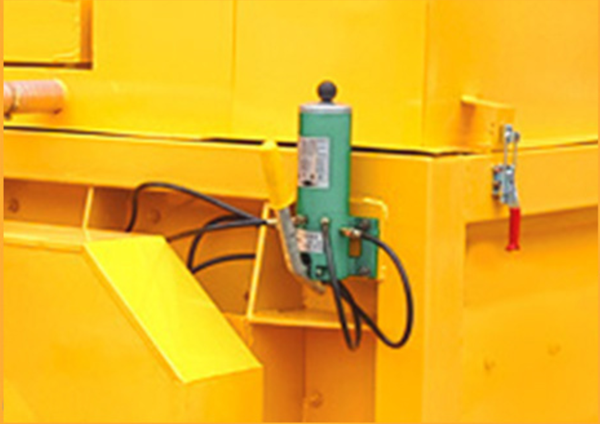

Manual lubrication pump: Enables precise oil delivery and stable lubrication for key components, with a large-diameter oil cap for easier refueling. The anti-slip, anti-falling handle cover enhances operational safety and convenience during use. |  |
