Hydraulic Brick Press for Sale

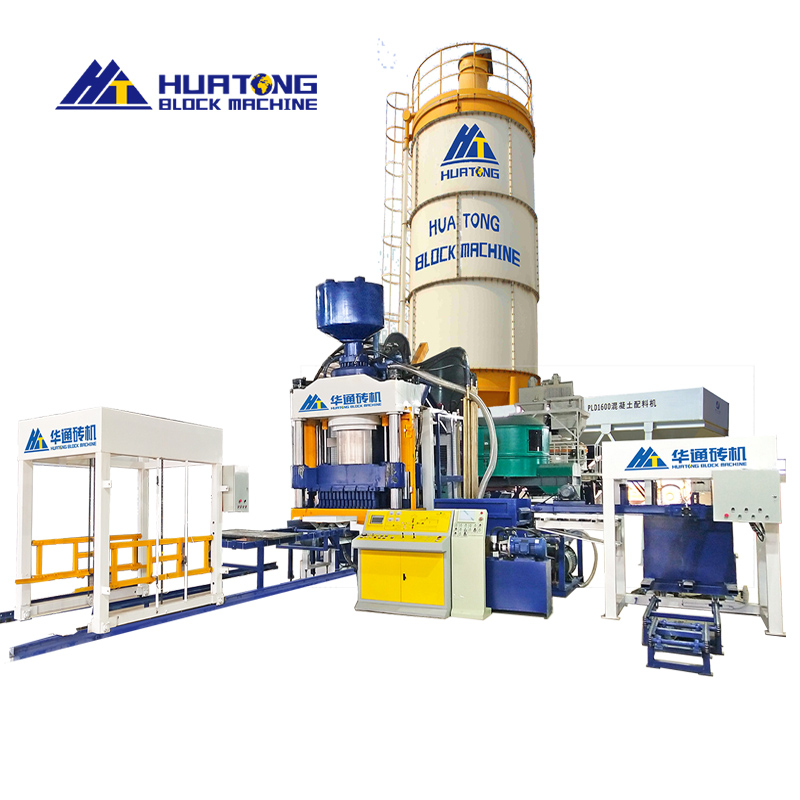

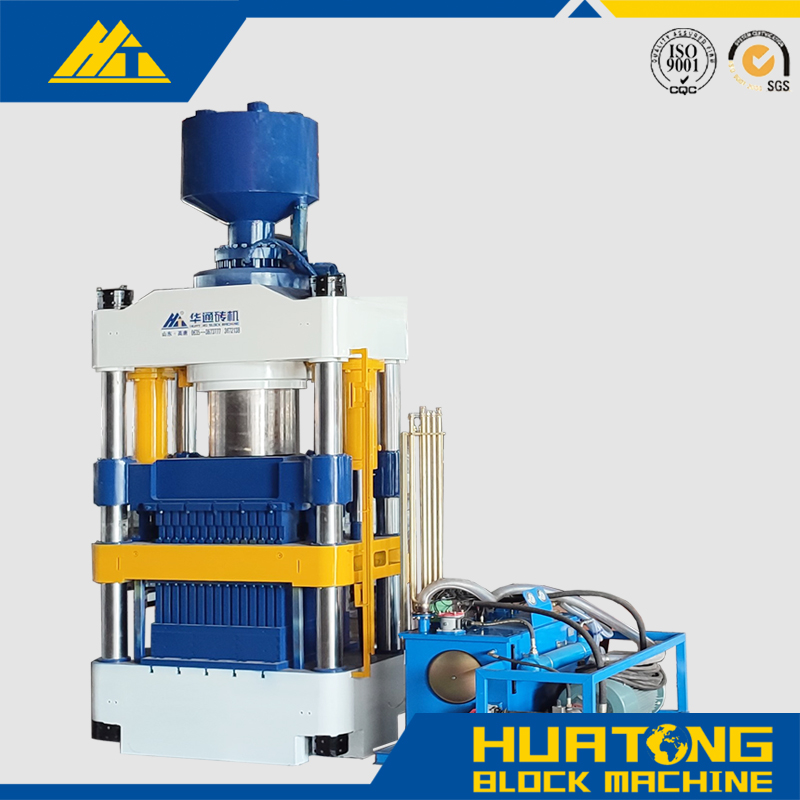

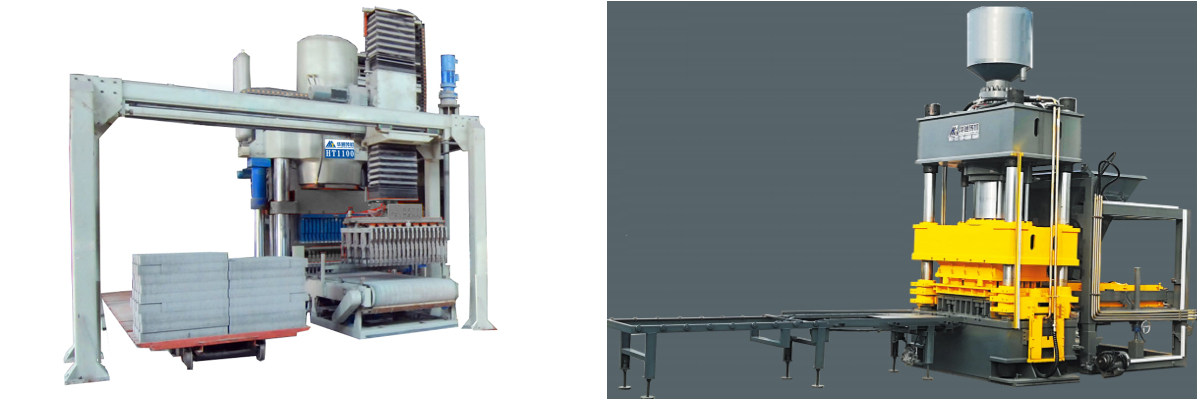

The HT1000 Static Hydraulic Pressure Brick Machine boasts a compact size, streamlined components, smooth operation, high pressure, short cycle times, and a high level of intelligence. By adjusting the mold, pressing parameters, sensor position, pressing time, and number of presses, it can produce both standard bricks and hollow blocks. It is the preferred equipment for producing fly ash bricks, fly ash sand bricks, and concrete bricks.
After rigorous multi-cycle and multi-condition testing, HT1000 Static Hydraulic Pressure Brick Machine excels in pressure, speed, and noise control. It delivers stable high pressure (rated 31.5 MPa), ensuring full compaction of eco-brick raw materials to boost finished product density and strength while reducing cracking.
Its optimized transmission and intelligent control enable a high production speed of 11000-13500 pieces/hour for standard eco-bricks—40% faster than traditional models—meeting large enterprises’ continuous production needs to cut cycles and raise efficiency.
HT1000 Static Hydraulic Pressure Brick Machine With multi-layer noise reduction. It has passed third-party eco-testing, making it ideal for large-scale eco-brick enterprises to achieve green production.
Performance parameters：
| Working Pressure (KN) | 13000 |
| Pressing Quantity (pieces, standard bricks) | 45 |
| Pressing Cycle (seconds) | 15-20 |
| Pressing Property | Bidirectional Pressing |
| System Maximum Pressure (Mpa) | 31.5 |
| Mold Opening (mm) | 1340X1120 |
| Fly Ash Proportion (%) | 70 |
| Annual Production Capacity (pieces, standard bricks) | 60,000,000 |
| Annual Fly Ash Consumption (tons) | 110,000-120,000 |
| Total Installed Power (KW) | 105.4 |
| Weight (t) | 40 |
| Exhaust Times | More than 3 times (automatically adjustable) |
| Maximum Filling Depth (mm) | 360 |
Production parameter：
| Standard brick：240*115*53mm | |
| Quantity of each molding：48 Molding cycle：16-20S Production capacity：8600--10800/H |  |
| Cellular brick：240*115*90mm | |
| Quantity of each molding：24 Molding cycle：16--20S Production capacity：4300--5400/H |  |
| hollow brick：390*190*190mm | |
| Quantity of each molding：10 Molding cycle：16--20S Production capacity：1800--2200/H |  |

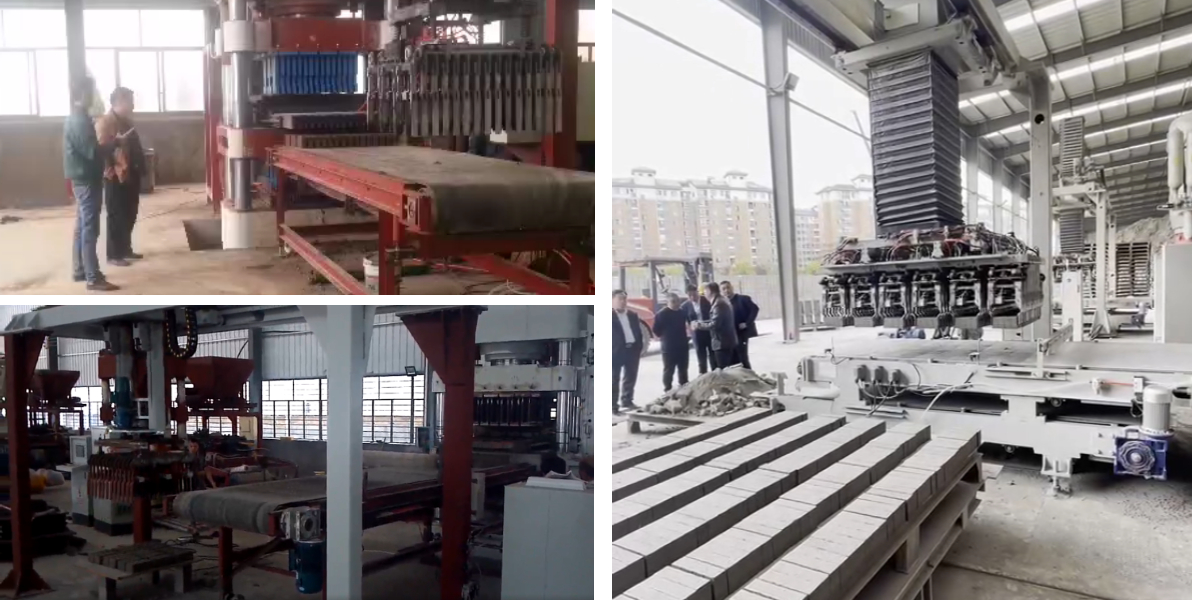

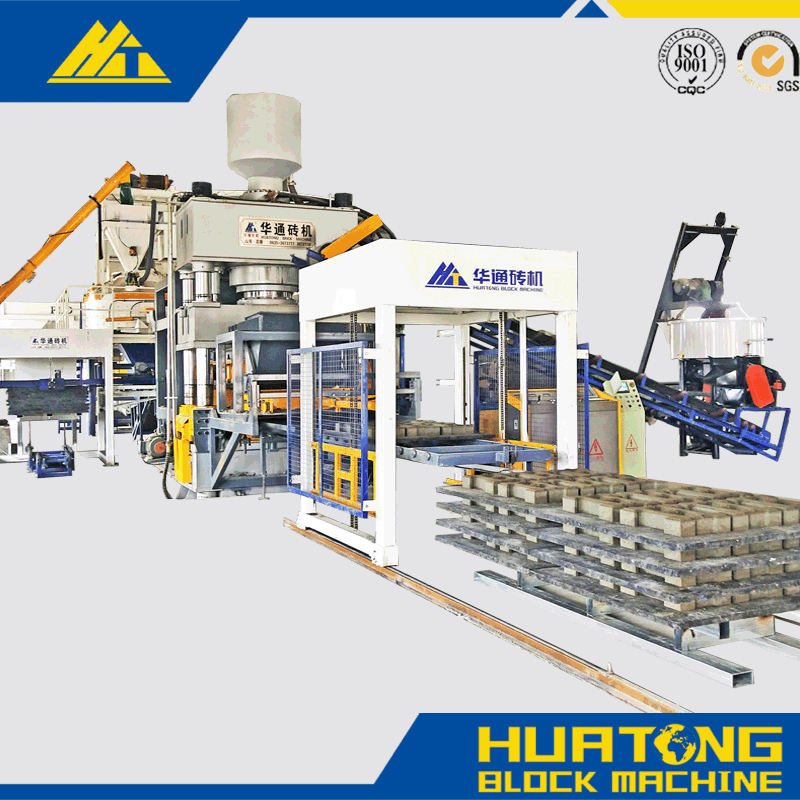

Equipment Production Site
Product Application Fields

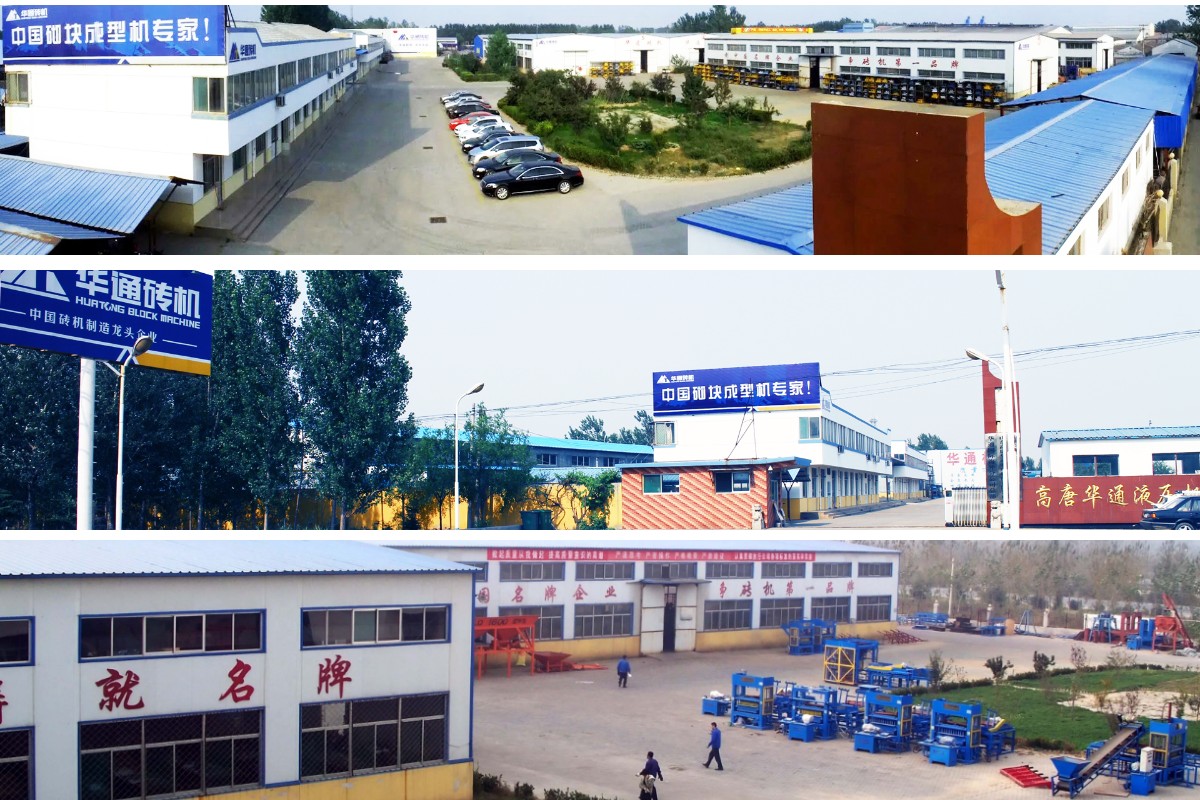

Founded in 2004 and based in Gaotang, Shandong, Shandong Huatong Hydraulic Machinery Co., Ltd. is a technology enterprise specializing in designing, developing, and manufacturing comprehensive utilization equipment for bulk industrial solid waste. Our product range includes intelligent production lines for automatic block forming machines, automatic static pressure forming systems, high-precision assembled gypsum blocks, aerated concrete blocks, and vertical shaft planetary mixing stations. We also provide customized waste solutions and operational services. Supported by subsidiaries including Huatong Machinery, Avante Machinery, Darun Environmental Protection, and Cote d'Ivoire Shandong Group Company, we employ over 270 skilled engineers and technicians dedicated to delivering innovative and sustainable industrial equipment.
International clients visited our company for on-site inspections and engaged in in-depth discussions regarding product cooperation and quality details. We highly value every communication with our global partners and are committed to providing reliable products and professional services.
The following are some of the honors, qualifications, and certifications our company has received, which demonstrate our commitment to quality and professionalism.
FAQ
1. What defines a static pressure brick machine?
It uses high static pressure (no vibration) to compact raw materials into bricks, ensuring high density and strength, ideal for durable construction.
2. How does it differ from vibration-based machines?
Unlike vibration models, it relies on steady pressure, producing denser bricks with less noise and dust, suitable for noise-sensitive areas.
3. What materials work with static pressure machines?
They process cement, fly ash, sand, and recycled aggregates, forming solid or hollow bricks without needing high-temperature firing.
4. Is it energy-efficient?
Yes, it consumes less power than vibration machines, as it avoids continuous motor operation for vibration, cutting energy costs.
