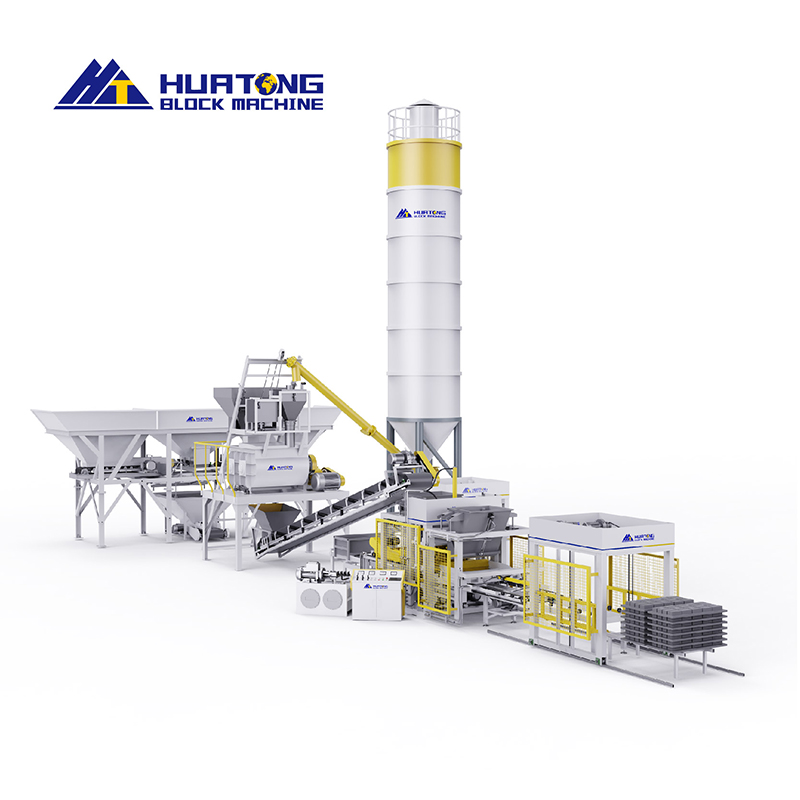

Automatic Blocks Making Machine Production Line
Model: QT5-15

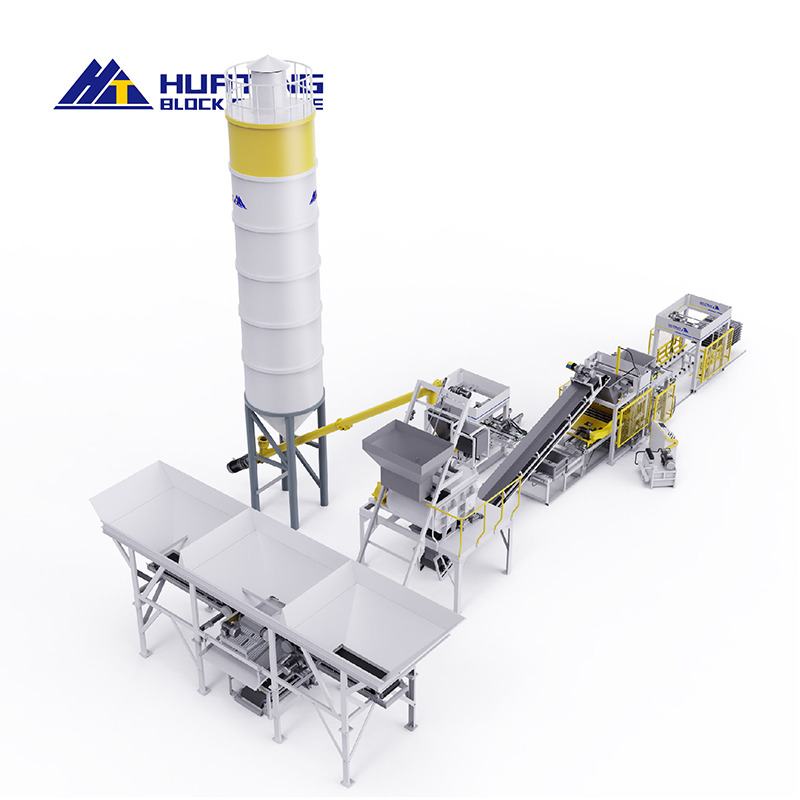

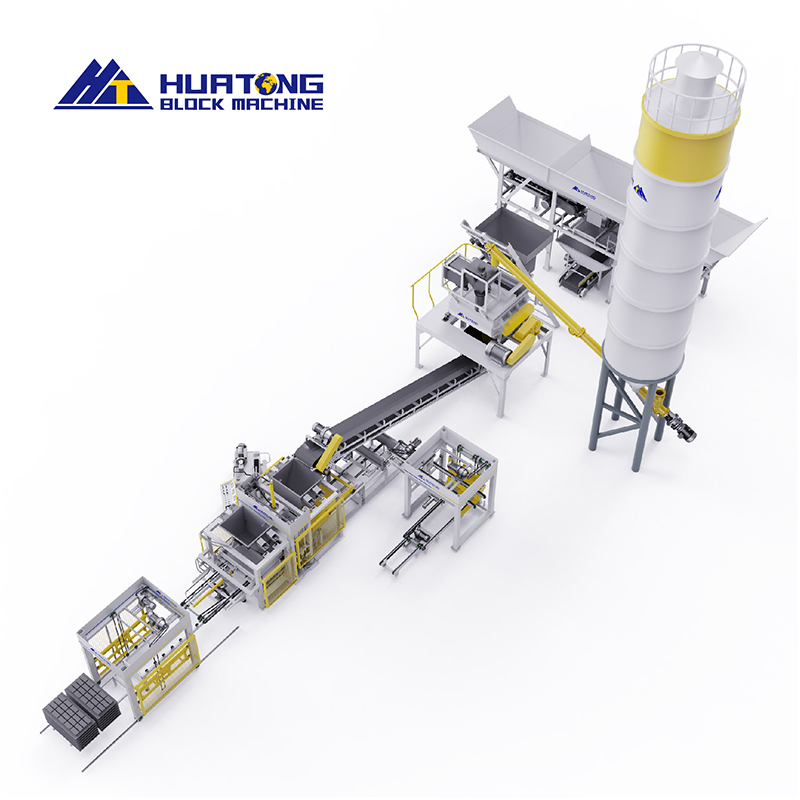

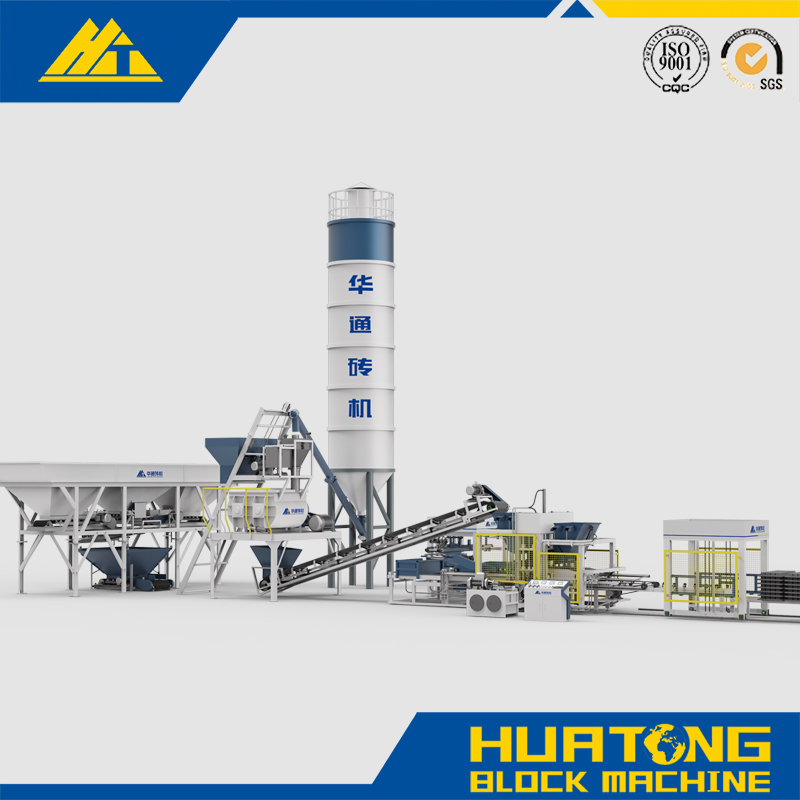

You can trust HUATONG Block Machinery Factory when purchasing a Automatic Blocks Making Machine Production Line. We will provide you with the best after-sales service and timely delivery. The block production line is a fully automated block production equipment that can be easily installed on site and quickly moved. It is suitable for projects that require large-scale block production. The production line mainly includes a raw material handling system, a concrete mixing system, a vibratory compaction system, and an automated control system.
HUATONG block machine is a professional mobile block production line manufacturer and supplier in China. The main features of the mobile block production line are: High production efficiency: The production line adopts a fully automatic control system and can produce thousands of blocks per hour. High efficiency. Stable product quality: The production line adopts vibration compaction technology. The blocks have high density, high strength, good stability, and reliable product quality. Energy saving and environmental protection: This production line adopts electrical transmission, which is energy-saving and environmentally friendly, and protects the ecological environment. At the same time, the production line automation control system can achieve precise batching, reduce raw material waste, and reduce the impact on the environment.

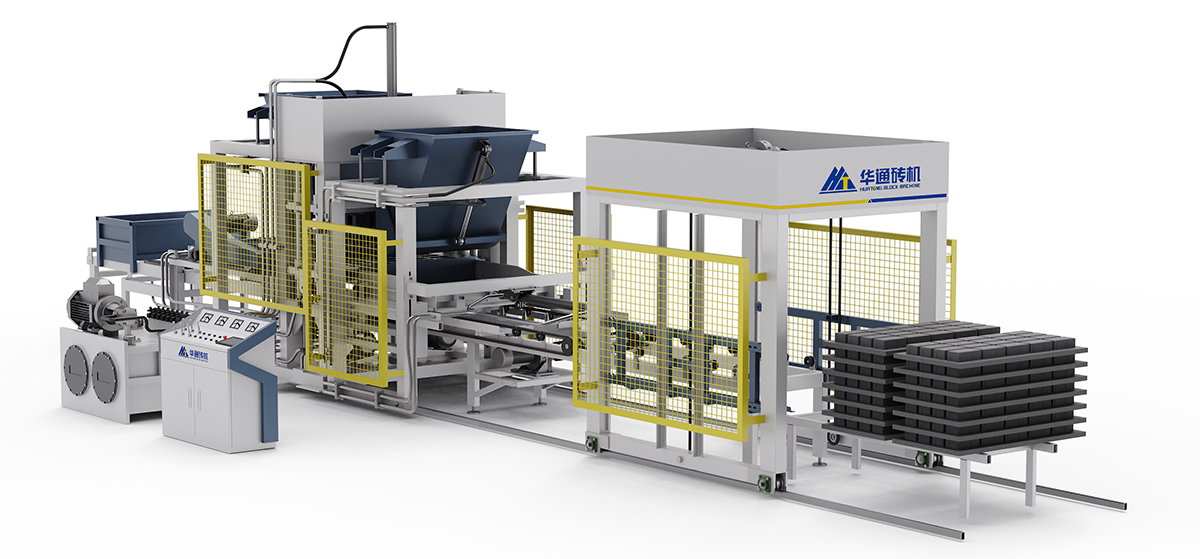

Technical parameters of QT5-15 fully automatic unburned brick machine
Host power | 35.7KW | Exciting force | 75KN | |
Machine quality | 11T | Mold Rockwell hardness | ≥55 degrees | |
Dimensions | 3150×1900×2930mm | Pallet size | 1150*580*25mm | |
Molding cycle | 12-16 seconds/time | power distribution | 80KW | |
Production capacity | 24 million units /year | Implementation standards | JC/T920-2011 | |
（240*115*53mm) |
Output table of some products of QT5-15 fully automatic unburned brick machine
model | pattern | size | Each molding | Molding cycle | Daily output (10 hours) |
Standard bricks |
| 240*115*53(mm) | 34 pieces/module | 12-15/Second | 80000-100000units |
porous bricks |
| 240*115*90（mm） | 16 pieces/module | 13-18/Second | 32000-44000units |
Hollow blocks |
| 390*190*190（mm） | 5pieces/module | 13-18/Second | 10000-14000units |
Dutch bricks |
| 200*100*60(mm) | 20pieces/module | 15-20/Second | 36000-48000units |
Performance and Features of the Production Line Equipment
1. Superior Design: The balancing system utilizes a four-bar guide system, coupled with extra-long guide sleeves, to ensure precise movement of the ram and mold box. The rack adjustment system further enhances balance and coordination between the ram and mold box during production. Rotary convection and forced material distribution ensure brick density and shorten distribution time, while the gear transmission provides greater stability. The dual-bar, cantilevered travel system increases material distribution speed, demonstrating durability and stability. The stacking machine utilizes variable frequency technology for speed control, intelligently adjusting cycle speeds, resulting in smooth start-up, coordinated fast and slow speeds, and flexible operation.
2. High Level of Automation: The Siemens central processing unit and BIDUC detection sensors work together to ensure the equipment operates automatically and cyclically without manual operation. The machine body and electrical equipment are integrated into a single unit. Numerous notification features, including text alarms, are integrated into the microcomputer to promptly and accurately inform the user of the cause of the malfunction and its corrective action when the machine experiences an operational error.
3. Mould features:The molds utilize multiple heat treatment processes, including quenching, tempering, and carburizing, extending their lifespan and exceeding national standards, significantly enhancing their wear resistance.
4.The hydraulic control system: utilizes imported high-dynamic proportional valves, which automatically adjust flow during production to protect the cylinders and act as buffers at both the forward and backward strokes. This improves stability, extends the cylinder's lifespan, and increases the speed and flexibility of various components.
5. Vibration System: Utilizing German variable frequency technology and mainframe frequency control, the vibrator assembly is oil-immersed, increasing high-speed load capacity and enabling instantaneous liquefaction and degassing of concrete. Bearing life is more than doubled. This effectively demonstrates the vibrator assembly's five key advantages: synchronization, soft start functionality, improved brick density, greater energy savings, and faster molding speeds.
6.Stable and Secure System: The system utilizes the principle of separating strong and weak currents, with weak current controlling strong currents. This eliminates external interference from weak currents while ensuring accurate signal acquisition and the safety of both personnel and equipment.
National quality certification

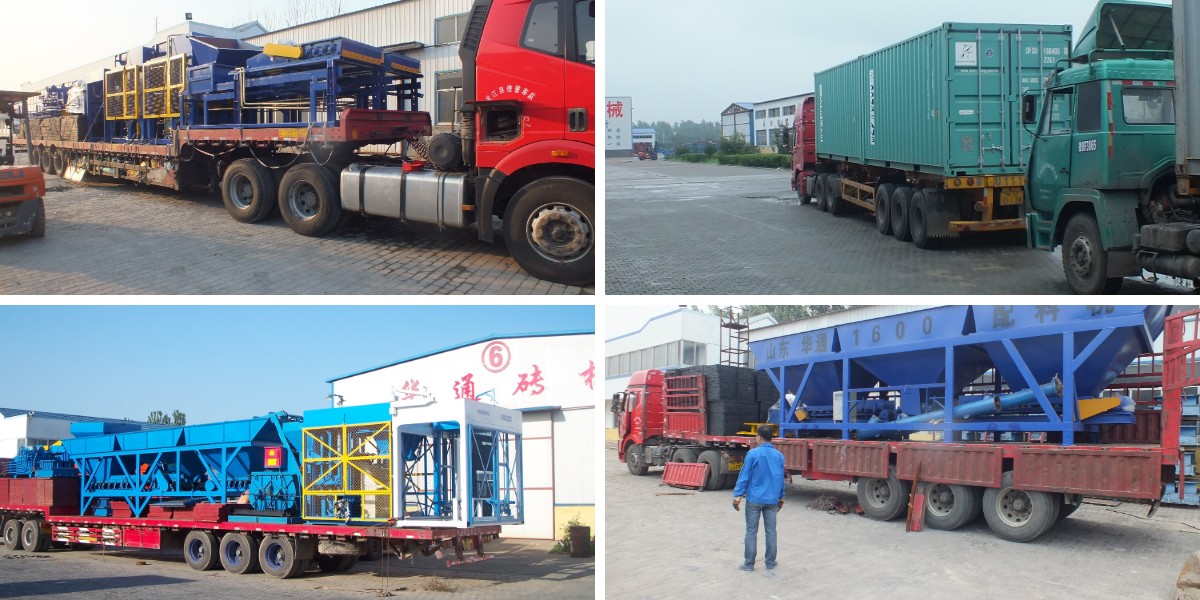

Logistics delivery guarantee
