Concrete Brick Making Machine

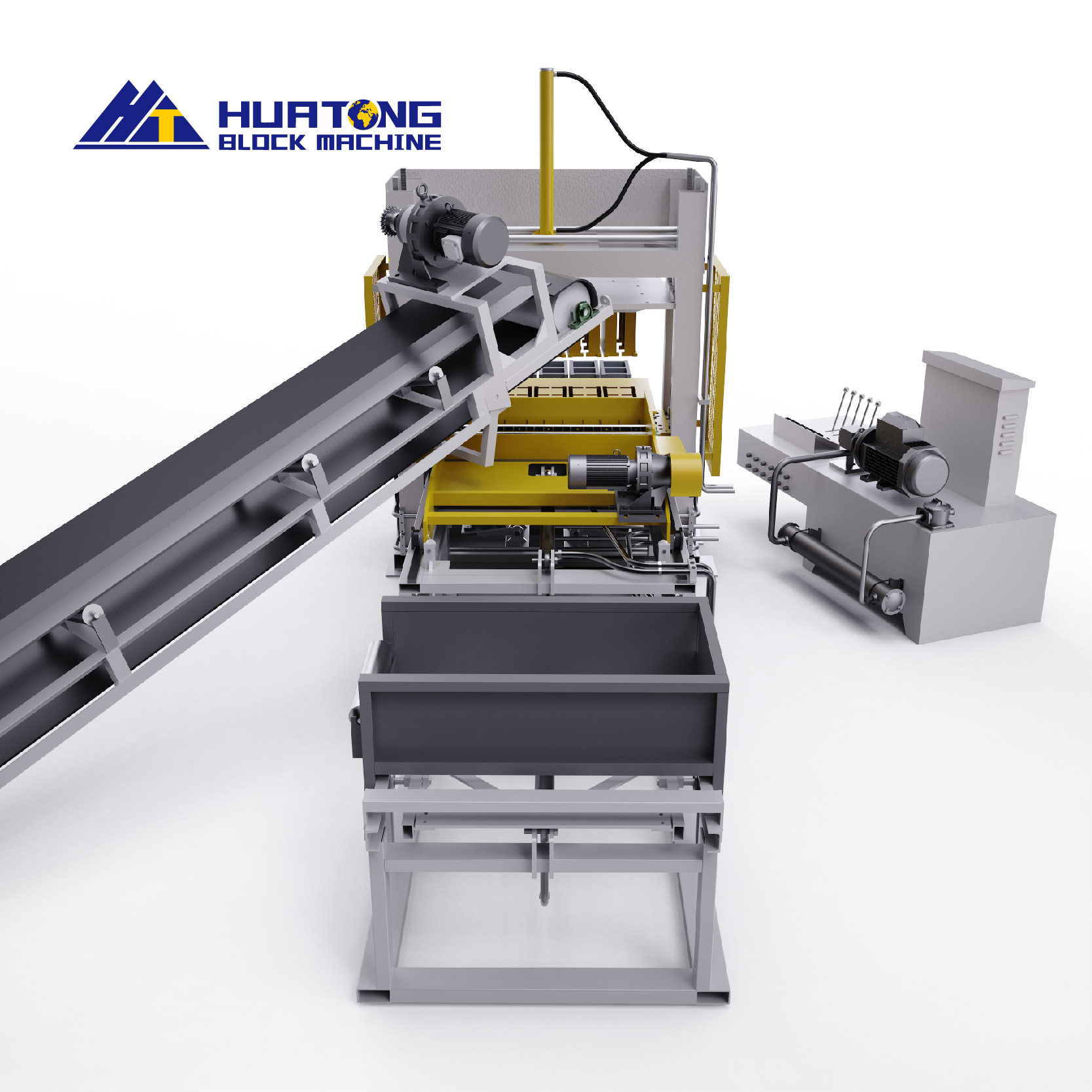

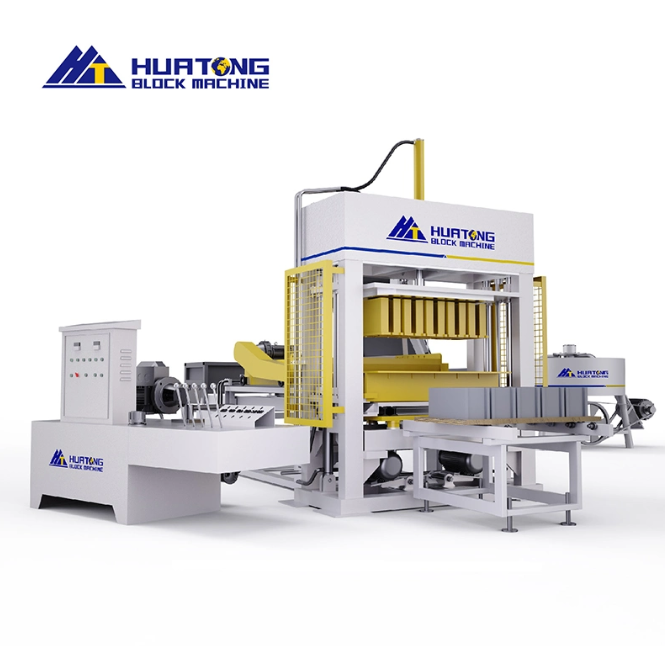

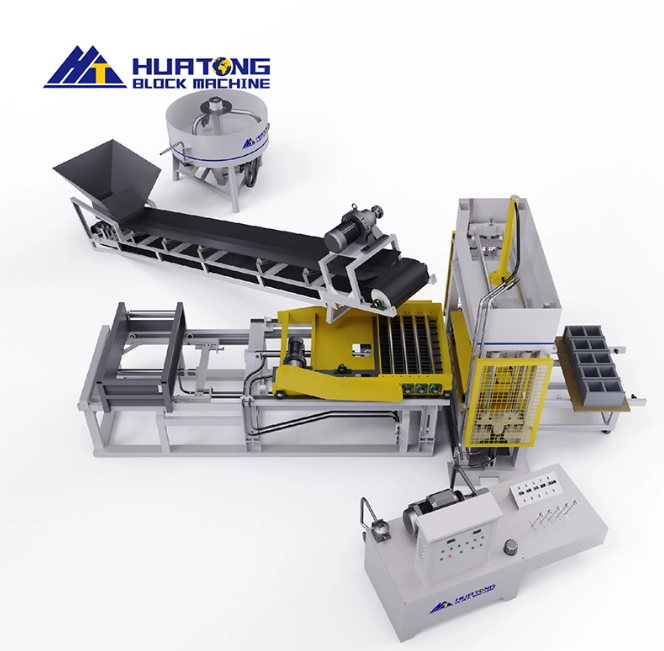

QT4-15 Semi-automatic Block Making Machine
As a professional manufacturer of industrial brick-making equipment, we are a trustworthy partner. You can purchase our products with complete confidence. We are committed to providing first-class after-sales support and fast delivery services for our QT4-15 block molding system. This versatile industrial machine—also known as a cement brick making machine, brick making equipment, block molding machine, or briquetting machine—can mix and compress raw materials such as quartz sand, cement, and fly ash into standardized bricks or blocks of various sizes and shapes.
Perspectives on block forming equipment vary uniquely from one stakeholder to another, and our core objective is to accommodate the distinct product requirements of every client to the fullest degree feasible. This customer-centric approach has enabled our machinery, including the specialized **Concrete brick making machine**, to garner extensive acclaim and an outstanding market reputation across numerous nations worldwide.
These versatile forming systems transform industrial byproducts such as fly ash, river sand, crushed gravel, stone powder, waste ceramic residue, smelting slag, and a minimal proportion of cement into innovative wall materials. The majority adopt hydraulic molding technology, whereas a subset relies on vibration-based forming processes. Capable of processing diverse industrial waste-derived new wall materials—ranging from sand, gravel and fly ash to slag, ceramsite and perlite—they fabricate bricks in an array of customized shapes and dimensions.
Production Capacity of QT4-15 Semi-automatic Block Making Machine
Block Type | Picture | Size（L x W x H) | Pcs./Pallet | Pcs./Hour | Pcs./8 Hours |
Hollow Block |
| 400x200x200mm | 4 | 625 | 5000 |
Hollow Block |
| 400x150x200mm | 5 | 780 | 6250 |
Hourdi Block |
| 530x160x195mm | 5 | 780 | 6250 |
Stock Brick |
| 220x105x70mm | 20 | 3750 | 30000 |
Paving Block |
| 200x100x60mm | 16 | 2300 | 18400 |
Paving Block |
| 225x112.5x60mm | 14 | 2000 | 16000 |
Technical Parameter of QT4-15Semi-automatic Block Making Machine
Dimension | 2800×1570×2600mm |
Weight | 4500KG |
Pallet Size | 960×630mm |
Power | 19.9KW |
Mode of Vibration | Table Vibration |
Vibration Frequency | 4200r/min |
Vibration Force | 70KN |
Cycle Time | 15-25sec |

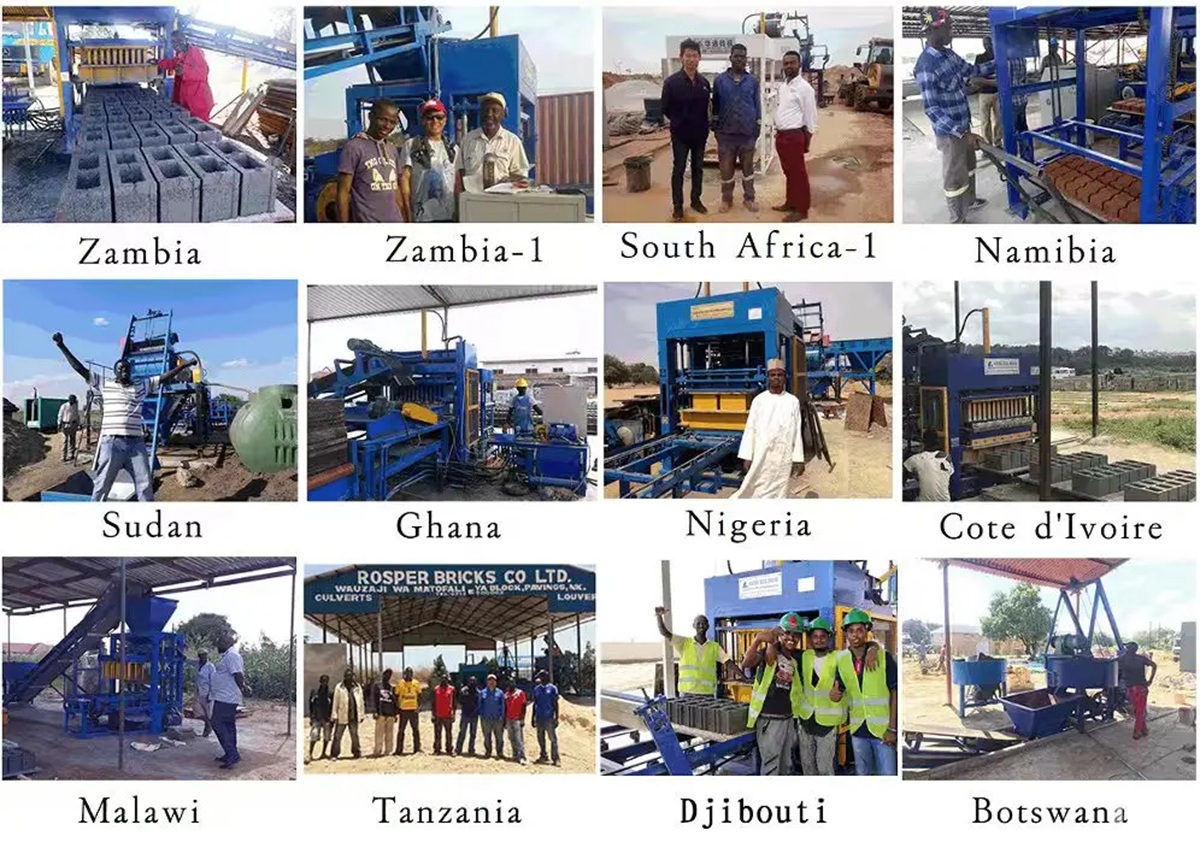

Our users' production sites
